Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
With control elementYes
Depth162mm
Width161mm
Number of digital inputs4
Power consumption45.75W
Height232mm
Number of digital outputs1
Number of analogue inputs2
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Number of HW-interfaces other0
Number of HW-interfaces RS-4851
Supporting protocol for TCP/IPNo
Number of HW-interfaces industrial Ethernet0
With optical interfaceNo
Supporting protocol for LONNo
Supporting protocol for KNXNo
Supporting protocol for CANYes
Supporting protocol for Data-HighwayNo
Number of HW-interfaces RS-2320
Supporting protocol for INTERBUSNo
Number of analogue outputs1
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Degree of protection (IP)IP66
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Number of phases input1
Mains voltage200 - 240V
4-quadrant operation possibleNo
Number of phases output1
Type of converterU converter
Supporting protocol for INTERBUS-SafetyNo
With PC connectionYes
Max. output at linear load at rated output voltage0.37kW
Integrated breaking resistanceNo
Max. output at quadratic load at rated output voltage0.37kW
Max. output frequency500Hz
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Relative symmetric net voltage tolerance10%
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Relative symmetric net frequency tolerance10%
Supporting protocol for EtherNet/IPYes
Supporting protocol for SafetyBUS pNo
Nominal output current I2N4.3A
Max. output voltage250V
Supporting protocol for BACnetNo
Degree of protection (NEMA)4X
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

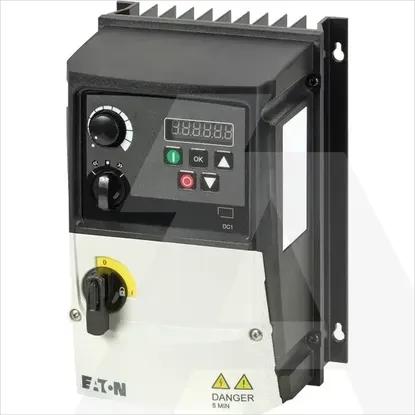

DC1-S24D3FN-A6SOE1
