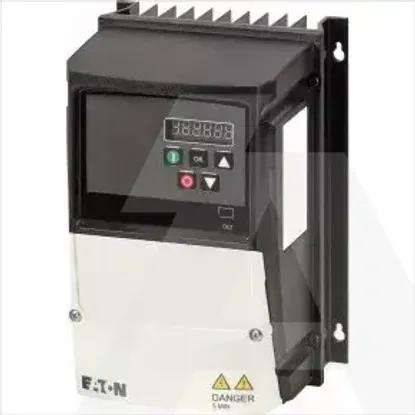

DC1-S27D0FN-A66OE1

Name: DC1-S27D0FN-A66OE1
Brand: EATON
Price: 1079.73 EUR
Availability: BackOrder

Code: 1871802

ManufacturerEaton (Moeller)

Catalog number199389

TypeLow-voltage industrial components

EAN code4015081977789

‌

‌
‌
‌
‌

‌

‌
‌

‌

Details

•Low-voltage industrial components
•Frequency converter =< 1 kV
•1 KOM
•EATON

Technical specifications

Number of phases input1

Number of phases output1

Max. output frequency500Hz

Nominal output current I2N7A

Max. output at quadratic load at rated output voltage0.75kW

Mains frequency50/60 Hz

Power consumption63W

Mains voltage200 - 240V

Max. output at linear load at rated output voltage0.75kW

Max. output voltage250V

Relative symmetric net frequency tolerance10%

Number of digital outputs1

Number of analogue outputs1

Relative symmetric net voltage tolerance10%

Number of analogue inputs2

Number of digital inputs4

With control elementYes

Application in domestic- and commercial area permittedYes

Application in industrial area permittedYes

Supporting protocol for CANYes

Supporting protocol for INTERBUSNo

Supporting protocol for PROFIBUSNo

Supporting protocol for ModbusYes

Supporting protocol for KNXNo

Supporting protocol for ASINo

Supporting protocol for TCP/IPNo

Supporting protocol for Data-HighwayNo

Supporting protocol for LONNo

Supporting protocol for SERCOSNo

Supporting protocol for PROFINET IONo

Supporting protocol for SUCONETNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for PROFINET CBANo

Supporting protocol for AS-Interface Safety at WorkNo

Supporting protocol for EtherNet/IPYes

Supporting protocol for PROFIsafeNo

Supporting protocol for DeviceNetNo

Supporting protocol for BACnetNo

Number of HW-interfaces industrial Ethernet0

Supporting protocol for other bus systemsYes

Supporting protocol for INTERBUS-SafetyNo

Number of interfaces PROFINET0

Supporting protocol for SafetyBUS pNo

Number of HW-interfaces RS-2320

Number of HW-interfaces RS-4220

Number of HW-interfaces RS-4851

Number of HW-interfaces USB0

Number of HW-interfaces serial TTY0

Number of HW-interfaces parallel0

Number of HW-interfaces other0

With optical interfaceNo

With PC connectionYes

Integrated breaking resistanceNo

4-quadrant operation possibleNo

Type of converterU converter

Degree of protection (NEMA)4X

Degree of protection (IP)IP66

Height232mm

Width161mm

Depth162mm

Related products
