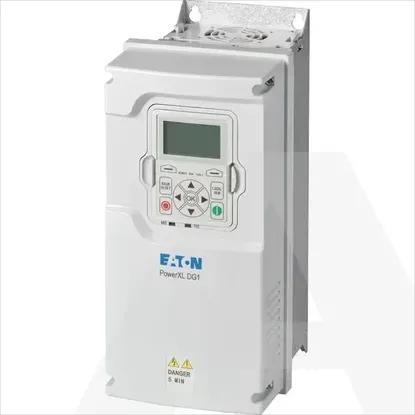

Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of digital inputs8
Power consumption167W
Height327mm
With control elementYes
Depth200.9mm
Width153mm
Number of digital outputs1
Number of HW-interfaces RS-4851
Number of analogue inputs2
Number of HW-interfaces RS-4220
Number of HW-interfaces other1
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Supporting protocol for LONNo
Supporting protocol for TCP/IPYes
Number of analogue outputs2
Number of HW-interfaces USB0
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetYes
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Degree of protection (IP)IP21
Supporting protocol for ModbusYes
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
With PC connectionYes
Supporting protocol for CANYes
With optical interfaceNo
Number of phases output3
Mains frequency50/60 Hz
Integrated breaking resistanceYes
Number of interfaces PROFINET0
Max. output frequency400Hz
Max. output at linear load at rated output voltage4kW
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Mains voltage380 - 500V
4-quadrant operation possibleYes
Type of converterU converter
Supporting protocol for SafetyBUS pNo
Max. output at quadratic load at rated output voltage5.5kW
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Relative symmetric net voltage tolerance10%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Relative symmetric net frequency tolerance10%
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Number of phases input3
Max. output voltage500V
Nominal output current I2N9A
Supporting protocol for BACnetYes
Degree of protection (NEMA)1
