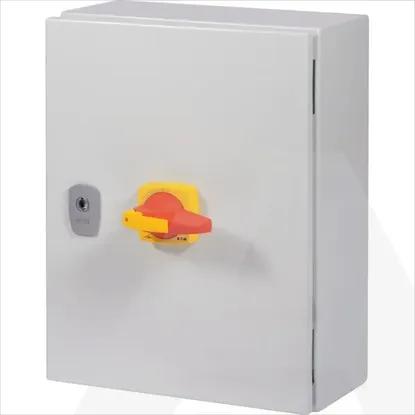

DMM-125/3/SE4/P-R
Code: 1872097
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Max. rated operation voltage Ue AC690V
Version as emergency stop installationYes
Rated operating voltage690 - 690V
Version as reversing switchNo
Number of switches1
Rated permanent current at AC-21, 400 V125A
Rated operation power at AC-3, 400 V0kW
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V30kW
Rated permanent current Iu125A
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq30kA
Switching power at 400 V37kW
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-23, 400 V66A
Number of poles3
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Colour control elementRed
Motor drive integratedNo
Suitable for intermediate mountingNo
Degree of protection (IP), front sideIP65
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Type of control elementLong turning handle
With pre-assembled cablingNo
InterlockableYes
Suitable for front mounting centreNo
Degree of protection (NEMA)12
Type of electrical connection of main circuitScrew connection
Width300mm
Width in number of modular spacings6
Depth216mm
Height400mm
