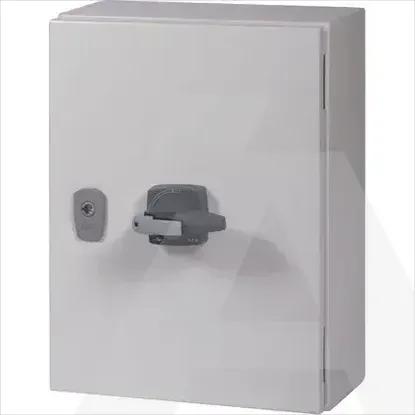

DMM-125/4/SE4/P-G
Code: 1872098
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Version as safety switchNo
Version as emergency stop installationNo
Number of switches1
Version as maintenance-/service switchYes
Version as main switchNo
Rated permanent current at AC-23, 400 V66A
Version as reversing switchNo
Rated permanent current Iu125A
Max. rated operation voltage Ue AC690V
Rated operation power at AC-3, 400 V0kW
Rated permanent current at AC-21, 400 V125A
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw2.5kA
Number of poles4
Rated operation power at AC-23, 400 V30kW
Conditioned rated short-circuit current Iq30kA
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Voltage release optionalNo
Switching power at 400 V37kW
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Suitable for distribution board installationNo
InterlockableYes
Suitable for front mounting centreNo
Colour control elementGrey
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Height400mm
Depth216mm
Width in number of modular spacings6
Width300mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
