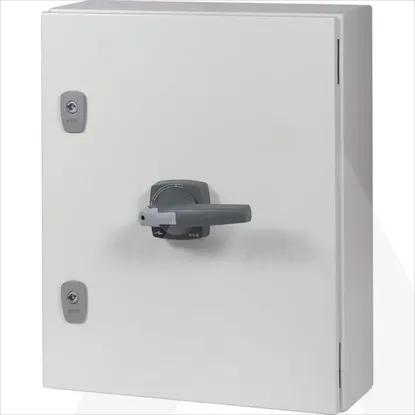

DMVS-160/4/SE5/P-G
Code: 1872114
ManufacturerEaton
Catalog number197334
TypeDMVS-160/4/SE5/P-G
CategorySwitch disconnector
EAN code4015080896968
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width400mm
Depth225mm
Height500mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Version as main switchNo
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq100kA
InterlockableYes
Number of switches1
Motor drive integratedNo
Version as emergency stop installationNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw0kA
Version as maintenance-/service switchYes
Colour control elementGrey
Suitable for floor mountingYes
Switching power at 400 V90kW
Suitable for front mounting 4-holeNo
Motor drive optionalNo
With pre-assembled cablingNo
Rated operation power at AC-23, 400 V90kW
Suitable for intermediate mountingNo
Version as safety switchNo
Device constructionComplete device in housing
Version as reversing switchNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V160A
Voltage release optionalNo
Rated permanent current at AC-21, 400 V160A
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC690V
