Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Height90mm
Depth58mm
Width72mm
ExpandableYes
Power consumption4W
Switching current8A
Number of digital inputs8
With displayNo
Suitable for safety functionsNo
With time switch clockYes
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Supporting protocol for Data-HighwayNo
Number of digital outputs4
Supporting protocol for DeviceNetNo
Number of analogue outputs0
Number of analogue inputs0
Supporting protocol for ModbusYes
Number of HW-interfaces RS-2320
Supporting protocol for CANNo
Number of HW-interfaces RS-4850
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Voltage type of supply voltageAC
Supporting protocol for TCP/IPYes
Number of HW-interfaces USB0
Supporting protocol for KNXNo
Number of HW-interfaces parallel0
With optical interfaceNo
Number of HW-interfaces other0
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
RedundancyNo
With relay outputYes
Front built-in possibleYes
Expansion deviceNo
Number of HW-interfaces Wireless0
Wall mounting/direct mountingNo
Basic deviceNo
Explosion safety category for dustNone
Radio standard Wi-Fi 802.11No
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Supporting protocol for INTERBUS-SafetyNo
IO link masterNo
Supporting protocol for SERCOSNo
Radio standard BluetoothNo
Rail mounting possibleYes
Number of interfaces PROFINET0
Rack-assembly possibleNo
Degree of protection (IP)IP20
Explosion safety category for gasNone
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Performance level according to EN ISO 13849-1None
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supply voltage AC 50 Hz85 - 264V
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location division 1No
SIL according to IEC 61508None
Supporting protocol for EtherCATNo
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location class IIINo
Supply voltage AC 60 Hz85 - 264V
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location class IINo
Radio standard GSMNo
Certified for UL hazardous location class IYes
Certified for UL hazardous location division 2Yes
Supply voltage DC85 - 264V
Radio standard GPRSNo
Radio standard UMTSNo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

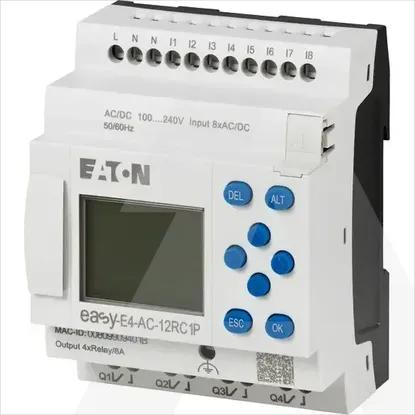

EASY-E4-AC-12RC1P
