Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Depth58mm
Suitable for safety functionsNo
With time switch clockYes
Number of analogue outputs0
With displayNo
Number of analogue inputs0
Number of digital inputs8
Width72mm
Number of digital outputs4
Voltage type of supply voltageAC
Power consumption4W
Switching current8A
Height90mm
ExpandableYes
Number of HW-interfaces RS-2320
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Supporting protocol for PROFIBUSNo
Number of HW-interfaces serial TTY0
With optical interfaceNo
Number of HW-interfaces RS-4850
Explosion safety category for gasNone
Supporting protocol for ASINo
Supporting protocol for CANNo
Supporting protocol for other bus systemsNo
With relay outputYes
Supporting protocol for SUCONETNo
Supporting protocol for KNXNo
Supporting protocol for TCP/IPYes
RedundancyNo
Supporting protocol for INTERBUSNo
Rail mounting possibleYes
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusYes
Number of HW-interfaces parallel0
Supporting protocol for Data-HighwayNo
Number of HW-interfaces other0
Explosion safety category for dustNone
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Number of interfaces PROFINET0
Degree of protection (IP)IP20
Rack-assembly possibleNo
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces Wireless0
Supporting protocol for SERCOSNo
Expansion deviceNo
Wall mounting/direct mountingNo
Front built-in possibleYes
Supporting protocol for AS-Interface Safety at WorkNo
IO link masterNo
Radio standard Wi-Fi 802.11No
Supporting protocol for Foundation FieldbusNo
Radio standard BluetoothNo
Supply voltage DC85 - 264V
Performance level according to EN ISO 13849-1None
Supply voltage AC 60 Hz85 - 264V
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Supply voltage AC 50 Hz85 - 264V
Supporting protocol for PROFIsafeNo
Basic deviceNo
Supporting protocol for PROFINET IONo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET CBANo
Radio standard GSMNo
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location class IYes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location division 1No
Radio standard GPRSNo
SIL according to IEC 61508None
Certified for UL hazardous location group G (non-conductive dusts)No
Radio standard UMTSNo
Supporting protocol for EtherCATNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

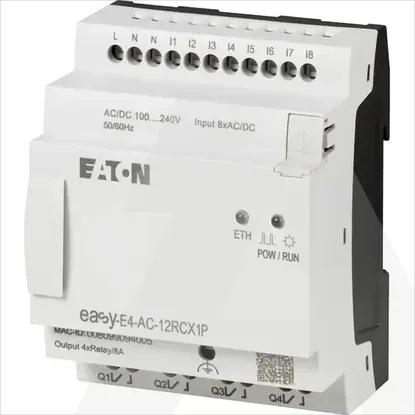

EASY-E4-AC-12RCX1P
