Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Number of HW-interfaces industrial Ethernet0
Height90mm
Depth58mm
Power consumption4W
Number of digital outputs8
Voltage type of supply voltageAC
ExpandableNo
With displayNo
Supporting protocol for LONNo
Number of analogue outputs0
Switching current5A
Number of analogue inputs0
With time switch clockNo
Width72mm
Number of digital inputs8
Suitable for safety functionsNo
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ib)No
Number of HW-interfaces RS-4850
Explosion safety category for gasNone
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Supporting protocol for PROFIBUSNo
RedundancyNo
Supporting protocol for DeviceNetNo
Number of HW-interfaces parallel0
Number of HW-interfaces USB0
Supporting protocol for other bus systemsNo
Number of HW-interfaces serial TTY0
Supporting protocol for CANNo
With relay outputYes
Number of HW-interfaces RS-4220
Supporting protocol for KNXNo
Rail mounting possibleYes
Explosion safety category for dustNone
Number of HW-interfaces other0
Appendant operation agent (Ex ia)No
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
With optical interfaceNo
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Number of HW-interfaces Wireless0
Wall mounting/direct mountingNo
Supporting protocol for EtherNet/IPNo
Rack-assembly possibleNo
Supporting protocol for PROFINET IONo
Performance level according to EN ISO 13849-1None
Radio standard Wi-Fi 802.11No
IO link masterNo
Supporting protocol for AS-Interface Safety at WorkNo
Supply voltage AC 50 Hz85 - 264V
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Expansion deviceNo
Supporting protocol for INTERBUS-SafetyNo
Front built-in possibleNo
Supporting protocol for DeviceNet SafetyNo
Basic deviceNo
Supply voltage AC 60 Hz85 - 264V
Radio standard BluetoothNo
Supporting protocol for SafetyBUS pNo
Supply voltage DC85 - 264V
Supporting protocol for PROFIsafeNo
SIL according to IEC 61508None
Certified for UL hazardous location class IINo
Certified for UL hazardous location class IYes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location division 1No
Radio standard GPRSNo
Radio standard GSMNo
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location class IIINo
Radio standard UMTSNo
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group E (metal dusts)No
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 2Yes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

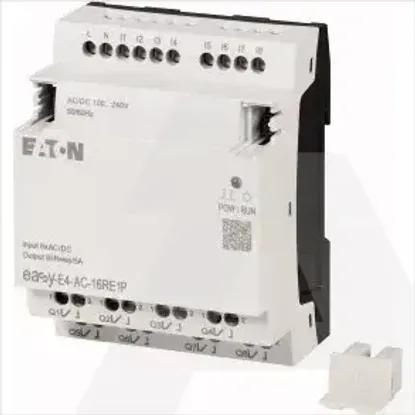

EASY-E4-AC-16RE1P
