Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Depth58mm
ExpandableYes
Power consumption2W
Width72mm
Switching current0.5A
Number of digital outputs4
Suitable for safety functionsNo
With displayYes
Height90mm
With time switch clockYes
Number of digital inputs4
Number of HW-interfaces RS-2320
Number of analogue outputs0
Number of HW-interfaces industrial Ethernet1
Voltage type of supply voltageDC
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Number of analogue inputs4
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4850
Number of HW-interfaces USB0
Supporting protocol for ModbusYes
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Number of HW-interfaces other0
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
With optical interfaceNo
Supporting protocol for KNXNo
Explosion safety category for dustNone
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP20
RedundancyNo
Rail mounting possibleYes
Appendant operation agent (Ex ib)No
Supporting protocol for other bus systemsNo
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
With relay outputNo
Supporting protocol for INTERBUS-SafetyNo
Explosion safety category for gasNone
Supporting protocol for DeviceNetNo
Supporting protocol for CANNo
Supporting protocol for AS-Interface Safety at WorkNo
Number of HW-interfaces Wireless0
Supporting protocol for DeviceNet SafetyNo
Radio standard BluetoothNo
Supporting protocol for PROFIsafeNo
Rack-assembly possibleNo
Basic deviceNo
Supporting protocol for EtherNet/IPNo
IO link masterNo
Supporting protocol for Foundation FieldbusNo
Expansion deviceNo
Wall mounting/direct mountingNo
Supporting protocol for PROFINET CBANo
Performance level according to EN ISO 13849-1None
Supporting protocol for SafetyBUS pNo
Radio standard Wi-Fi 802.11No
Front built-in possibleYes
Supporting protocol for PROFINET IONo
SIL according to IEC 61508None
Radio standard UMTSNo
Supply voltage AC 50 Hz0 - 0V
Supply voltage DC20.4 - 28.8V
Radio standard GPRSNo
Supply voltage AC 60 Hz0 - 0V
Radio standard GSMNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 2Yes
Supporting protocol for EtherCATNo
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location class IYes
Certified for UL hazardous location group A (acetylene)Yes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

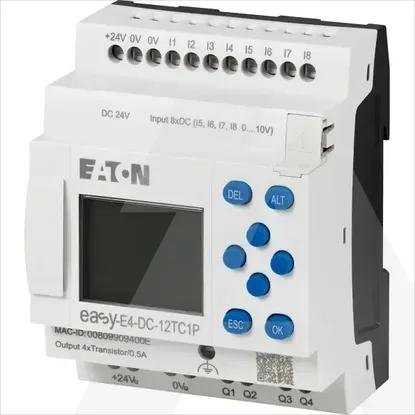

EASY-E4-DC-12TC1P
