Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Width36mm
Height90mm
Depth58mm
ExpandableNo
With time switch clockNo
Number of digital inputs0
Supporting protocol for LONNo
Number of HW-interfaces RS-2320
Number of digital outputs0
With displayNo
Number of HW-interfaces RS-4850
Voltage type of supply voltageDC
Number of analogue inputs4
Number of HW-interfaces USB0
Switching current0A
Number of HW-interfaces industrial Ethernet0
Number of analogue outputs0
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Power consumption1W
With optical interfaceNo
Number of HW-interfaces other0
Supporting protocol for PROFIBUSNo
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Suitable for safety functionsNo
Rail mounting possibleYes
Supporting protocol for other bus systemsNo
Supporting protocol for SUCONETNo
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
With relay outputNo
Supporting protocol for DeviceNetNo
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP20
RedundancyNo
Supporting protocol for Data-HighwayNo
Explosion safety category for gasNone
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Radio standard Wi-Fi 802.11No
Rack-assembly possibleNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Wall mounting/direct mountingNo
Front built-in possibleNo
Number of HW-interfaces Wireless0
Expansion deviceNo
Radio standard BluetoothNo
Number of interfaces PROFINET0
Basic deviceNo
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IONo
IO link masterNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IIINo
SIL according to IEC 61508None
Radio standard UMTSNo
Radio standard GSMNo
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC20.4 - 28.8V
Radio standard GPRSNo
Certified for UL hazardous location class IYes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

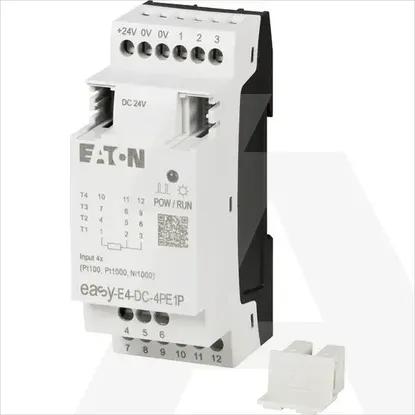

EASY-E4-DC-4PE1P
