Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Width36mm
Height90mm
With displayNo
Power consumption2.5W
Switching current0A
Suitable for safety functionsNo
With time switch clockNo
Number of analogue inputs4
Number of digital outputs0
ExpandableNo
Depth58mm
Number of digital inputs0
Number of analogue outputs2
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet0
With optical interfaceNo
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Voltage type of supply voltageDC
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPNo
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for CANNo
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSNo
RedundancyNo
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Explosion safety category for gasNone
Explosion safety category for dustNone
Appendant operation agent (Ex ib)No
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Degree of protection (IP)IP20
Number of interfaces PROFINET0
Appendant operation agent (Ex ia)No
With relay outputNo
Rail mounting possibleYes
Expansion deviceNo
Number of HW-interfaces Wireless0
Wall mounting/direct mountingNo
Front built-in possibleNo
Rack-assembly possibleNo
Basic deviceNo
Radio standard BluetoothNo
Radio standard Wi-Fi 802.11No
Supporting protocol for SafetyBUS pNo
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
IO link masterNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPNo
Certified for UL hazardous location class IYes
Radio standard GPRSNo
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC20.4 - 28.8V
Certified for UL hazardous location division 1No
Supply voltage AC 50 Hz0 - 0V
SIL according to IEC 61508None
Radio standard UMTSNo
Supporting protocol for EtherCATNo
Radio standard GSMNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 2Yes
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group E (metal dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

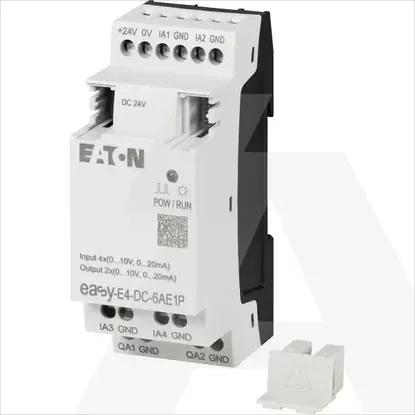

EASY-E4-DC-6AE1P
