Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Depth58mm
Width36mm
Height90mm
ExpandableNo
Number of digital inputs4
Switching current5A
With displayNo
Power consumption2W
Suitable for safety functionsNo
Number of analogue inputs0
Voltage type of supply voltageAC/DC
Number of digital outputs4
Supporting protocol for LONNo
With time switch clockNo
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of analogue outputs0
Supporting protocol for CANNo
Supporting protocol for TCP/IPYes
Number of HW-interfaces other0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
With optical interfaceNo
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
With relay outputYes
Supporting protocol for other bus systemsNo
Explosion safety category for dustNone
Appendant operation agent (Ex ib)No
Number of interfaces PROFINET0
Appendant operation agent (Ex ia)No
Rail mounting possibleYes
Explosion safety category for gasNone
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
Number of HW-interfaces Wireless0
Degree of protection (IP)IP20
Front built-in possibleNo
Supporting protocol for INTERBUS-SafetyNo
RedundancyNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Wall mounting/direct mountingYes
Rack-assembly possibleNo
Expansion deviceNo
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
Performance level according to EN ISO 13849-1None
Supply voltage DC10.2 - 28.8V
Supporting protocol for Foundation FieldbusNo
Radio standard GPRSNo
Supporting protocol for DeviceNet SafetyNo
Supply voltage AC 60 Hz85 - 264V
Supporting protocol for SafetyBUS pNo
Supply voltage AC 50 Hz85 - 264V
Supporting protocol for AS-Interface Safety at WorkNo
Radio standard UMTSNo
Supporting protocol for EtherNet/IPNo
Radio standard GSMNo
Supporting protocol for PROFINET CBANo
IO link masterNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IONo
Basic deviceNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IINo
SIL according to IEC 61508None
Certified for UL hazardous location class IYes
Certified for UL hazardous location group A (acetylene)Yes
Certified for UL hazardous location division 2Yes
Supporting protocol for EtherCATNo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group D (propane)Yes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

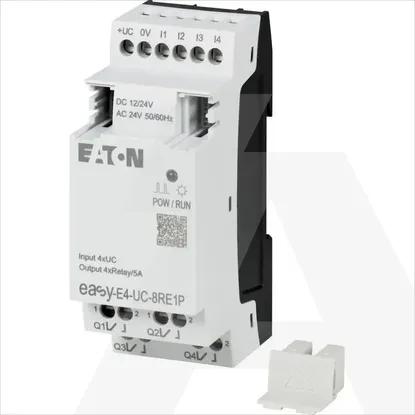

EASY-E4-UC-8RE1P
