Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Mounting methodDIN rail
Rated voltage230V
Rated current25A
Built-in depth45mm
Rated fault current30mA
Selective protectionNo
Short-circuit breaking capacity (Icw)6kA
Rated insulation voltage Ui440V
Leakage current typeAC
Number of poles2
Surge current capacity0.25kA
With interlocking deviceYes
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1.5 - 16mm²
Connectable conductor cross section solid-core1.5 - 35mm²
Width in number of modular spacings2
Pollution degree2
Frequency50 Hz
Short-time delayed trippingNo
Ambient temperature during operating-25 - 40°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

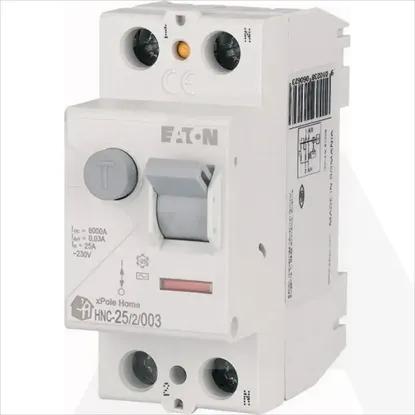

HNC-25/2/003
