Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height155mm
Depth250mm
Width200mm
Number of poles4
Rated permanent current Iu100A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-3, 400 V37kW
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated short-time withstand current lcw2kA
Motor drive integratedNo
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V55kW
Colour control elementRed
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Version as safety switchYes
Type of control elementDoor coupling rotary drive
Version as main switchYes
Suitable for floor mountingYes
InterlockableYes
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V100A
Motor drive optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V100A
Max. rated operation voltage Ue AC690V
Switching power at 400 V55kW
Voltage release optionalNo
Number of switches1
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

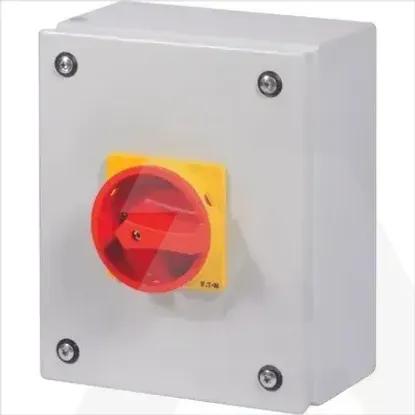

P3-100/SE3/SVB/N
