Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height114mm
Depth150mm
Rated operation power at AC-3, 400 V0kW
Width90mm
Rated permanent current Iu30A
Version as safety switchNo
Colour control elementRed
Version as main switchYes
Rated operation power at AC-23, 400 V0kW
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Version as emergency stop installationYes
Number of poles3
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw0kA
Motor drive integratedNo
InterlockableYes
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq100kA
Number of switches1
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Voltage release optionalNo
Max. rated operation voltage Ue AC480V
Suitable for distribution board installationNo
Motor drive optionalNo
Suitable for front mounting centreNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)12
Version as reversing switchNo
Rated permanent current at AC-21, 400 V0A
Switching power at 400 V0kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

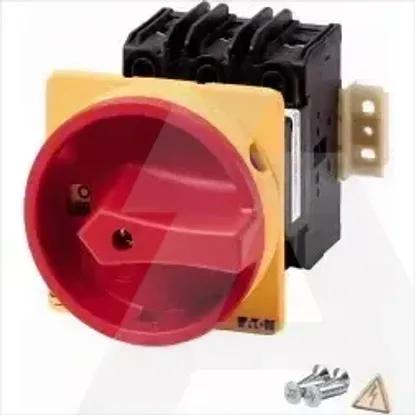

P3-30/V/SVB-MCS
