Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Depth150mm
Height114mm
Rated permanent current Iu30A
Number of poles3
Width90mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq100kA
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Number of switches1
InterlockableYes
Version as emergency stop installationNo
Suitable for front mounting 4-holeYes
Switching power at 400 V0kW
Rated operation power at AC-23, 400 V0kW
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V0A
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Rated short-time withstand current lcw0kA
Suitable for front mounting centreNo
Colour control elementBlack
Max. rated operation voltage Ue AC480V
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

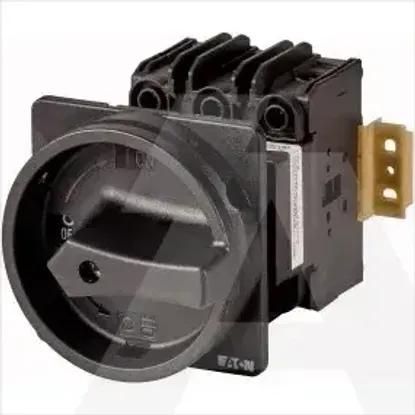

P3-30/V/SVB-SW-MCS
