Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width200mm
Height155mm
Rated operation power at AC-3, 400 V30kW
Depth250mm
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Rated permanent current Iu63A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of poles3
Conditioned rated short-circuit current Iq100kA
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of switches1
Version as safety switchNo
InterlockableYes
Version as emergency stop installationNo
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw1.26kA
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V30kW
Device constructionComplete device in housing
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Switching power at 400 V30kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V63A
Version as reversing switchNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V63A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

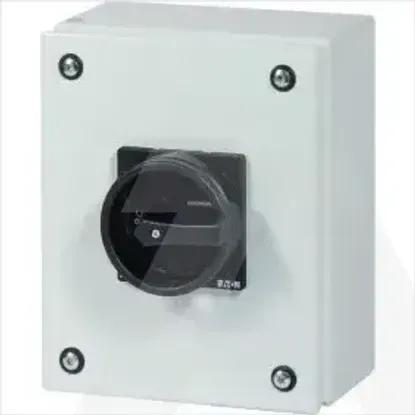

P3-63/SE3/SVB-SW/N
