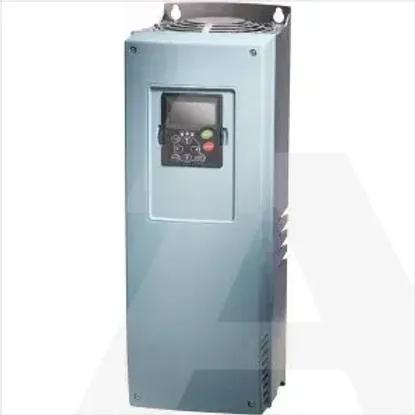

Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Width195mm
Height237mm
Depth558mm
Number of digital inputs6
With control elementNo
Number of analogue outputs1
Number of digital outputs1
Number of analogue inputs2
Number of HW-interfaces RS-4850
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of HW-interfaces RS-2321
Number of HW-interfaces parallel0
Number of HW-interfaces other0
Number of HW-interfaces RS-4220
With optical interfaceNo
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for other bus systemsNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for SERCOSNo
Degree of protection (IP)IP21
Supporting protocol for INTERBUS-SafetyNo
With PC connectionNo
4-quadrant operation possibleNo
Mains voltage380 - 500V
Number of phases input3
Mains frequency50/60 Hz
Number of phases output3
Integrated breaking resistanceNo
Application in industrial area permittedNo
Number of interfaces PROFINET0
Type of converterOther
Supporting protocol for Foundation FieldbusNo
Max. output at quadratic load at rated output voltage22kW
Nominal output current I2N46A
Relative symmetric net voltage tolerance10%
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IONo
Application in domestic- and commercial area permittedNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for AS-Interface Safety at WorkNo
Max. output voltage500V
Max. output at linear load at rated output voltage18.5kW
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPNo
Relative symmetric net frequency tolerance10%
Max. output frequency320Hz
Degree of protection (NEMA)Other
Supporting protocol for BACnetNo
