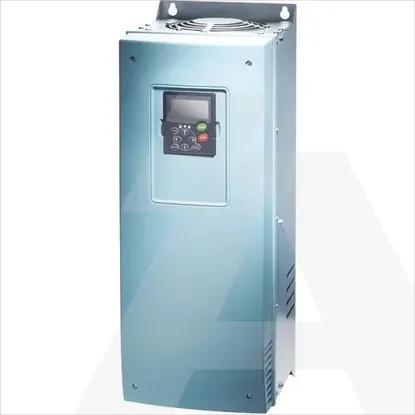

Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Number of analogue inputs2
Height257mm
Depth640mm
Number of digital inputs6
With control elementNo
Width237mm
Number of digital outputs1
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of analogue outputs1
Number of HW-interfaces RS-2321
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4850
With optical interfaceNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Number of HW-interfaces USB0
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ModbusNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Degree of protection (IP)IP21
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
Mains voltage525 - 690V
Supporting protocol for KNXNo
4-quadrant operation possibleNo
With PC connectionNo
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Max. output frequency320Hz
Relative symmetric net frequency tolerance10%
Supporting protocol for PROFINET IONo
Type of converterOther
Application in industrial area permittedNo
Supporting protocol for Foundation FieldbusNo
Max. output voltage690V
Relative symmetric net voltage tolerance10%
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedNo
Integrated breaking resistanceNo
Max. output at quadratic load at rated output voltage45kW
Supporting protocol for EtherNet/IPNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Max. output at linear load at rated output voltage37kW
Supporting protocol for PROFINET CBANo
Number of phases output3
Supporting protocol for PROFIsafeNo
Nominal output current I2N52A
Degree of protection (NEMA)Other
Number of phases input3
Supporting protocol for BACnetNo
