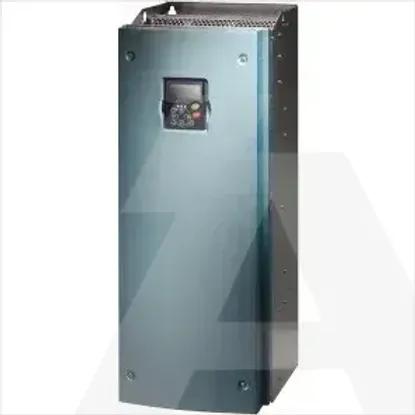

Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Height758mm
Depth344mm
With control elementYes
Width291mm
Number of digital inputs6
Number of HW-interfaces RS-4850
Number of analogue outputs1
Number of HW-interfaces RS-4220
Number of analogue inputs2
Supporting protocol for LONYes
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2321
Number of digital outputs1
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Number of HW-interfaces other0
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for ModbusYes
Number of HW-interfaces parallel0
Degree of protection (IP)IP21
Number of HW-interfaces USB0
Supporting protocol for Data-HighwayYes
Supporting protocol for other bus systemsYes
Supporting protocol for CANYes
Supporting protocol for SUCONETNo
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUSYes
Supporting protocol for KNXNo
With PC connectionYes
Mains voltage323 - 550V
Supporting protocol for SERCOSNo
Type of converterU converter
Number of interfaces PROFINET0
Mains frequency50/60 Hz
4-quadrant operation possibleYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for DeviceNetYes
Relative symmetric net frequency tolerance10%
Supporting protocol for DeviceNet SafetyNo
Max. output at linear load at rated output voltage90kW
Supporting protocol for EtherNet/IPYes
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Number of phases input3
Supporting protocol for PROFINET IOYes
Integrated breaking resistanceYes
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage110kW
Supporting protocol for PROFIsafeNo
Number of phases output3
Max. output frequency320Hz
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Nominal output current I2N205A
Supporting protocol for SafetyBUS pNo
Max. output voltage500V
Degree of protection (NEMA)1
Supporting protocol for BACnetNo
