Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Height1165mm
Width500mm
Depth506mm
With control elementYes
Number of digital inputs6
Number of HW-interfaces USB0
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2321
Number of HW-interfaces serial TTY0
Number of analogue outputs1
Number of digital outputs1
Number of analogue inputs2
Supporting protocol for LONYes
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Supporting protocol for CANYes
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUSNo
Number of HW-interfaces other0
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Number of HW-interfaces parallel0
With optical interfaceNo
Mains voltage323 - 550V
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Degree of protection (IP)IP00
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayYes
Mains frequency50/60 Hz
With PC connectionYes
Number of phases input3
4-quadrant operation possibleYes
Type of converterU converter
Number of interfaces PROFINET0
Number of phases output3
Integrated breaking resistanceYes
Application in industrial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Degree of protection (NEMA)Other
Supporting protocol for BACnetNo
Relative symmetric net voltage tolerance10%
Max. output frequency320Hz
Application in domestic- and commercial area permittedYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IOYes
Max. output at quadratic load at rated output voltage250kW
Supporting protocol for PROFINET CBANo
Max. output at linear load at rated output voltage200kW
Nominal output current I2N460A
Max. output voltage500V
Supporting protocol for Foundation FieldbusNo
Relative symmetric net frequency tolerance10%
Supporting protocol for PROFIsafeNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

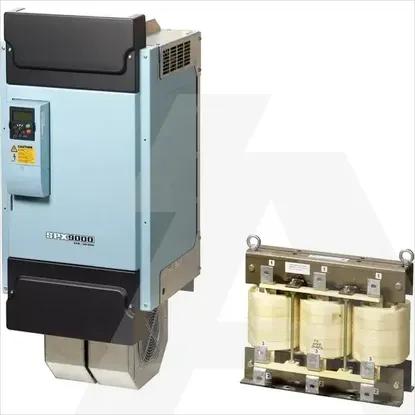

SPX300A0-4A2B1
