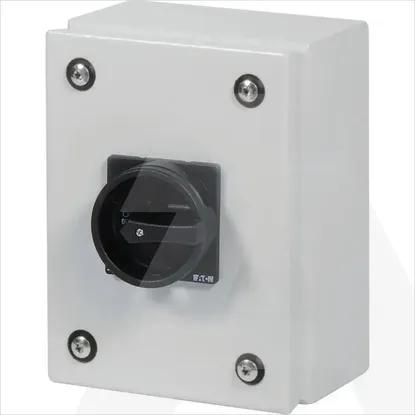

T0-2-8900/SE1/SVB-SW
Code: 1880404
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC690V
Version as main switchYes
Rated operation power at AC-23, 400 V5.5kW
Rated operation power at AC-3, 400 V5.5kW
Version as maintenance-/service switchYes
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact1
Suitable for floor mountingYes
Device constructionComplete device in housing
Rated permanent current Iu20A
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Version as safety switchNo
Suitable for distribution board installationNo
InterlockableYes
Type of control elementDoor coupling rotary drive
Number of switches1
Colour control elementBlack
Suitable for front mounting centreNo
Rated operating voltage690 - 690V
Rated short-time withstand current lcw0.32kA
Number of poles3
With pre-assembled cablingNo
Conditioned rated short-circuit current Iq6kA
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Depth200mm
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Height135mm
Width150mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
