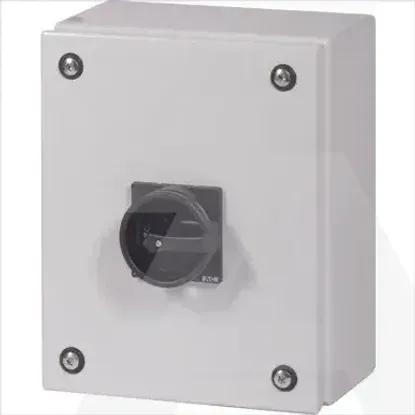

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth250mm
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V11kW
Height155mm
Width200mm
Conditioned rated short-circuit current Iq1kA
Rated permanent current Iu32A
Number of poles3
Number of auxiliary contacts as normally closed contact1
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V15kW
Type of control elementDoor coupling rotary drive
Colour control elementBlack
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.65kA
Suitable for front mounting 4-holeNo
Voltage release optionalNo
InterlockableYes
Number of switches1
Version as safety switchNo
Version as main switchYes
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Motor drive integratedNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Suitable for front mounting centreNo
Switching power at 400 V15kW
Rated permanent current at AC-21, 400 V32A
Device constructionComplete device in housing
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V32A
Version as reversing switchNo
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-3-15683/SE2/SVB-SW
