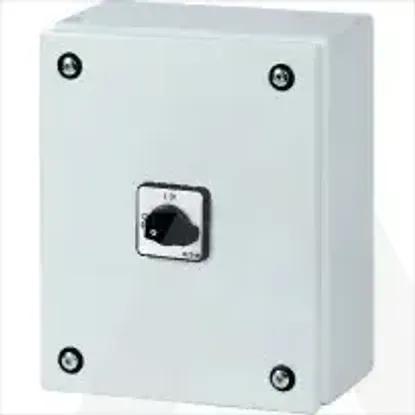

T3-3-8342/SE2
Code: 1880428
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Max. rated operation voltage Ue AC690V
Version as safety switchNo
Version as main switchNo
Version as reversing switchNo
Version as maintenance-/service switchNo
Number of switches1
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Rated permanent current Iu32A
Rated permanent current at AC-23, 400 V32A
Rated short-time withstand current lcw0.65kA
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Rated operation power at AC-3, 400 V11kW
Conditioned rated short-circuit current Iq1kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Number of poles6
Motor drive integratedNo
Device constructionComplete device in housing
Rated operation power at AC-23, 400 V15kW
Motor drive optionalNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
Type of control elementShort thumb-grip
Suitable for distribution board installationNo
InterlockableNo
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)12
Width200mm
Height147mm
Depth250mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
