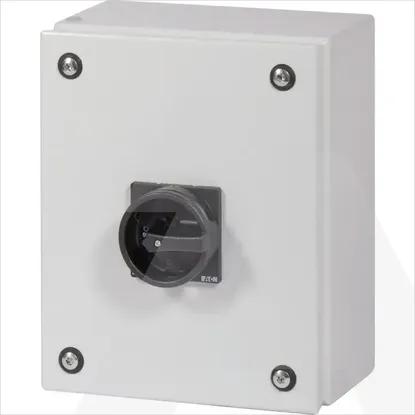

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width200mm
Number of auxiliary contacts as normally closed contact0
Depth250mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V11kW
Height155mm
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingYes
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq1kA
Rated permanent current Iu32A
Rated short-time withstand current lcw0.65kA
Suitable for front mounting 4-holeNo
Version as main switchYes
Number of poles8
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Number of switches1
Rated operation power at AC-23, 400 V15kW
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Version as emergency stop installationNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V32A
Rated permanent current at AC-23, 400 V32A
Device constructionComplete device in housing
Voltage release optionalNo
Version as reversing switchNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Switching power at 400 V15kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-4-8344/SE2/SVB-SW
