Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Width74.1mm
Height55.4mm
Time delay at signal exchange0.1 - 0.3ms
Input current at signal 12mA
Number of digital inputs16
Suitable for safety functionsNo
Depth100.8mm
Number of digital outputs0
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet0
Voltage type of supply voltageDC
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Supporting protocol for LONNo
Supporting protocol for ModbusNo
Number of HW-interfaces other1
Supporting protocol for CANNo
With optical interfaceNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces USB0
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Type of voltage (input voltage)DC
Supporting protocol for PROFIBUSNo
Supporting protocol for ASINo
Number of HW-interfaces parallel0
Type of digital outputNone
Type of electric connectionScrew-/spring clamp connection
Supporting protocol for other bus systemsYes
Output current0A
Supporting protocol for DeviceNetNo
Short-circuit protection, outputs availableNo
Supporting protocol for Data-HighwayNo
Appendant operation agent (Ex ib)No
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Explosion safety category for dustNone
Supporting protocol for SUCONETNo
System accessoryYes
Explosion safety category for gasNone
Supporting protocol for INTERBUS-SafetyNo
Fieldbus connection over separate bus coupler possibleYes
Rail mounting possibleYes
Appendant operation agent (Ex ia)No
Rack-assembly possibleNo
Number of interfaces PROFINET0
Radio standard Wi-Fi 802.11No
Wall mounting/direct mountingNo
Front built-in possibleNo
Radio standard BluetoothNo
Number of HW-interfaces Wireless0
Supporting protocol for EtherNet/IPNo
IO link masterNo
Supporting protocol for PROFINET CBANo
Performance level according to EN ISO 13849-1None
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Supply voltage AC 50 Hz0 - 0V
Digital inputs configurableNo
Supporting protocol for SafetyBUS pNo
Permitted voltage at output0 - 0V
Supply voltage AC 60 Hz0 - 0V
Type of output voltageDC
Supply voltage DC18 - 30V
Permitted voltage at input0 - 30V
Supporting protocol for EtherCATNo
SIL according to IEC 61508None
Digital outputs configurableNo
Certified for UL hazardous location class INo
Radio standard GSMNo
Certified for UL hazardous location class IINo
Radio standard UMTSNo
Radio standard GPRSNo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

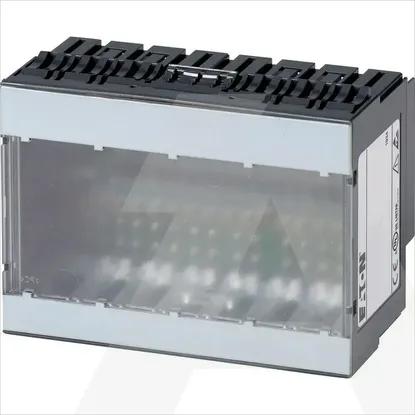

XN-16DI-24VDC-P
