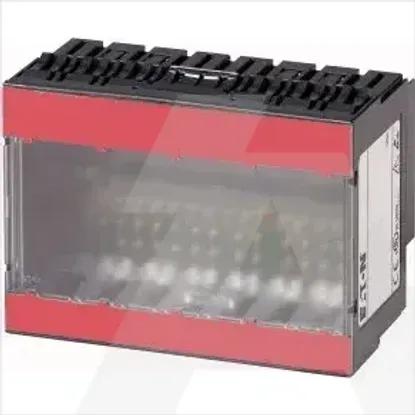

XN-16DO-24VDC-0.5A-P

Name: XN-16DO-24VDC-0.5A-P
Brand: EATON
Price: 386.55 EUR
Availability: BackOrder

Code: 1882211

ManufacturerEaton (Moeller)

Catalog number140141

TypeProgrammable logic controllers PLC

EAN code7640130120020

‌

‌
‌
‌
‌

‌

‌
‌

‌

Details

•Programmable logic controllers PLC
•Fieldbus, decentr. periphery - digital I/O module
•1 KOM
•EATON

Technical specifications

Voltage type of supply voltageDC

Number of digital inputs0

Input current at signal 10mA

Supply voltage AC 50 Hz0 - 0V

Supply voltage AC 60 Hz0 - 0V

Number of digital outputs16

Digital outputs configurableNo

Permitted voltage at input0 - 0V

Type of digital outputTransistor

Digital inputs configurableNo

Permitted voltage at output0 - 30V

Output current0.5A

Supply voltage DC18 - 30V

Type of output voltageDC

Type of voltage (input voltage)DC

Short-circuit protection, outputs availableYes

Number of HW-interfaces industrial Ethernet0

Number of HW-interfaces RS-2320

Number of HW-interfaces parallel0

Number of HW-interfaces RS-4850

Number of interfaces PROFINET0

Number of HW-interfaces serial TTY0

Number of HW-interfaces USB0

Number of HW-interfaces other1

Number of HW-interfaces Wireless0

Supporting protocol for EtherCATNo

Supporting protocol for PROFIBUSNo

Supporting protocol for CANNo

Supporting protocol for ASINo

With optical interfaceNo

Supporting protocol for KNXNo

Number of HW-interfaces RS-4220

Supporting protocol for DeviceNetNo

Supporting protocol for TCP/IPNo

Supporting protocol for INTERBUSNo

Supporting protocol for ModbusNo

Supporting protocol for Data-HighwayNo

Radio standard BluetoothNo

Radio standard Wi-Fi 802.11No

Supporting protocol for SUCONETNo

Radio standard GPRSNo

Radio standard GSMNo

Radio standard UMTSNo

IO link masterNo

System accessoryYes

Degree of protection (IP)IP20

Type of electric connectionScrew-/spring clamp connection

Time delay at signal exchange0.1 - 0.3ms

Rail mounting possibleYes

Fieldbus connection over separate bus coupler possibleYes

Front built-in possibleNo

Rack-assembly possibleNo

Wall mounting/direct mountingNo

SIL according to IEC 61508None

Suitable for safety functionsNo

Performance level according to EN ISO 13849-1None

Appendant operation agent (Ex ia)No

Explosion safety category for gasNone

Appendant operation agent (Ex ib)No

Explosion safety category for dustNone

Certified for UL hazardous location class INo

Certified for UL hazardous location class IINo

Certified for UL hazardous location class IIINo

Certified for UL hazardous location division 1No

Certified for UL hazardous location group A (acetylene)No

Certified for UL hazardous location division 2No

Certified for UL hazardous location group B (hydrogen)No

Certified for UL hazardous location group C (ethylene)No

Certified for UL hazardous location group D (propane)No

Certified for UL hazardous location group E (metal dusts)No

Certified for UL hazardous location group F (carbonaceous dusts)No

Width74.1mm

Certified for UL hazardous location group G (non-conductive dusts)No

Height55.4mm

Depth100.8mm

Supporting protocol for PROFINET IONo

Supporting protocol for PROFINET CBANo

Supporting protocol for LONNo

Supporting protocol for SERCOSNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for EtherNet/IPNo

Supporting protocol for AS-Interface Safety at WorkNo

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for other bus systemsYes

Supporting protocol for SafetyBUS pNo

Supporting protocol for INTERBUS-SafetyNo

Supporting protocol for PROFIsafeNo

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
