Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Width12.6mm
Number of HW-interfaces RS-4220
Number of analogue outputs2
Height74.1mm
Number of analogue inputs0
Depth55.4mm
Number of HW-interfaces RS-2320
Voltage type of supply voltageDC
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other1
Number of HW-interfaces RS-4850
Supporting protocol for SUCONETNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Number of HW-interfaces parallel0
Supporting protocol for ModbusNo
Number of HW-interfaces USB0
Supporting protocol for DeviceNetNo
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUSNo
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ASINo
Input, resistorNo
Input, voltageNo
Output signal configurableYes
Input, currentNo
Input, thermocoupleNo
Input, resistance thermometerNo
Input signal, configurableNo
Supporting protocol for other bus systemsYes
Supporting protocol for TCP/IPNo
Output, voltageNo
Output, currentYes
Front built-in possibleNo
Fieldbus connection over separate bus coupler possibleYes
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)No
Rail mounting possibleYes
Resolution of the analogue inputs0Bit
Explosion safety category for dustNone
Rack-assembly possibleNo
Supporting protocol for INTERBUS-SafetyNo
Type of electric connectionScrew-/spring clamp connection
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
Number of interfaces PROFINET0
IO link masterNo
System accessoryYes
Wall mounting/direct mountingNo
Appendant operation agent (Ex ib)No
Number of HW-interfaces Wireless0
Explosion safety category for gasNone
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPNo
Resolution of the analogue outputs16Bit
Supporting protocol for PROFIsafeNo
Radio standard GSMNo
Supply voltage AC 60 Hz0 - 0V
Supporting protocol for SafetyBUS pNo
Radio standard GPRSNo
Supply voltage AC 50 Hz0 - 0V
Analogue inputs configurableNo
Supporting protocol for EtherCATNo
Analogue outputs configurableYes
Supporting protocol for PROFINET CBANo
Radio standard UMTSNo
Supply voltage DC20.4 - 28.8V
Certified for UL hazardous location class INo
Supporting protocol for PROFINET IONo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Supporting protocol for Foundation FieldbusNo
Certified for UL hazardous location class IIINo
SIL according to IEC 61508None
Degree of protection (NEMA)1
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

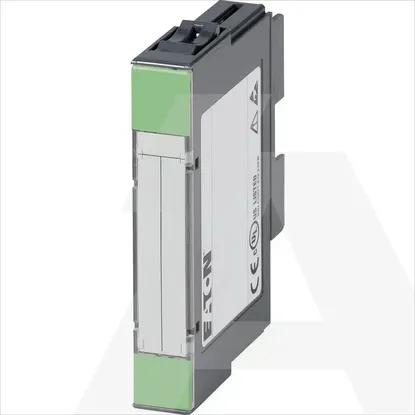

XN-2AO-I(0/4...20MA)
