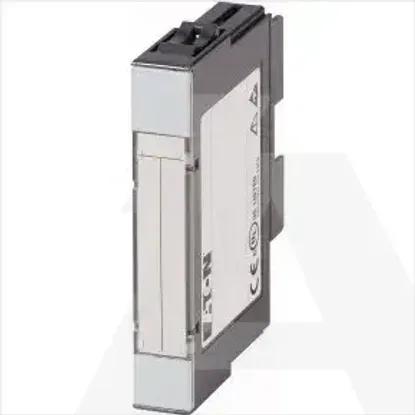

XN-2DI-120/230VAC

Name: XN-2DI-120/230VAC
Brand: EATON
Price: 103.71 EUR
Availability: BackOrder

Code: 1882223

ManufacturerEaton (Moeller)

Catalog number140058

TypeProgrammable logic controllers PLC

EAN code7640130120167

Details

•Programmable logic controllers PLC
•Fieldbus, decentr. periphery - digital I/O module
•1 KOM
•EATON

Technical specifications

Width12.6mm

Depth55.4mm

Suitable for safety functionsNo

Number of digital inputs2

Number of digital outputs0

Time delay at signal exchange0.1 - 0.2ms

Height74.1mm

Input current at signal 13mA

Number of HW-interfaces industrial Ethernet0

Supporting protocol for LONNo

Voltage type of supply voltageAC

Number of HW-interfaces RS-2320

Number of HW-interfaces RS-4850

Number of HW-interfaces serial TTY0

Type of voltage (input voltage)AC

Number of HW-interfaces RS-4220

Number of HW-interfaces other1

With optical interfaceNo

Supporting protocol for SUCONETNo

Supporting protocol for TCP/IPNo

Number of HW-interfaces USB0

Supporting protocol for DeviceNetNo

Supporting protocol for ModbusNo

Output current0A

Number of HW-interfaces parallel0

Supporting protocol for other bus systemsYes

Supporting protocol for KNXNo

Supporting protocol for INTERBUSNo

Supporting protocol for Data-HighwayNo

Supporting protocol for PROFIBUSNo

Short-circuit protection, outputs availableNo

Supporting protocol for ASINo

Type of digital outputNone

Rail mounting possibleYes

Type of electric connectionScrew-/spring clamp connection

Supporting protocol for CANNo

Front built-in possibleNo

Supporting protocol for INTERBUS-SafetyNo

System accessoryYes

Appendant operation agent (Ex ia)No

Explosion safety category for gasNone

IO link masterNo

Explosion safety category for dustNone

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for SERCOSNo

Fieldbus connection over separate bus coupler possibleYes

Supporting protocol for Foundation FieldbusNo

Rack-assembly possibleNo

Radio standard BluetoothNo

Degree of protection (IP)IP20

Supporting protocol for AS-Interface Safety at WorkNo

Appendant operation agent (Ex ib)No

Wall mounting/direct mountingNo

Number of interfaces PROFINET0

Number of HW-interfaces Wireless0

Performance level according to EN ISO 13849-1None

Supporting protocol for EtherNet/IPNo

Radio standard Wi-Fi 802.11No

Supporting protocol for PROFIsafeNo

Supporting protocol for PROFINET IONo

Supporting protocol for PROFINET CBANo

Supply voltage AC 60 Hz102 - 253V

Supply voltage AC 50 Hz102 - 253V

Supply voltage DC0 - 0V

Supporting protocol for SafetyBUS pNo

Certified for UL hazardous location division 1No

Permitted voltage at input0 - 250V

Radio standard GSMNo

Radio standard UMTSNo

Certified for UL hazardous location class IINo

Certified for UL hazardous location class INo

SIL according to IEC 61508None

Permitted voltage at output0 - 0V

Digital outputs configurableNo

Supporting protocol for EtherCATNo

Certified for UL hazardous location class IIINo

Digital inputs configurableNo

Type of output voltageAC

Radio standard GPRSNo

Certified for UL hazardous location group D (propane)No

Certified for UL hazardous location group B (hydrogen)No

Certified for UL hazardous location group A (acetylene)No

Certified for UL hazardous location group C (ethylene)No

Certified for UL hazardous location division 2No

Certified for UL hazardous location group E (metal dusts)No

Certified for UL hazardous location group F (carbonaceous dusts)No

Certified for UL hazardous location group G (non-conductive dusts)No

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
