Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Height16.8mm
Depth104.2mm
Width80.3mm
Suitable for safety functionsNo
Power consumption2.6W
Number of analogue inputs10
Number of HW-interfaces industrial Ethernet0
Voltage type of supply voltageDC
Supporting protocol for LONNo
Number of analogue outputs0
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-4220
Supporting protocol for TCP/IPNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces other1
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Supporting protocol for ASINo
Output, currentNo
Supporting protocol for Data-HighwayNo
Input, thermocoupleYes
Supporting protocol for INTERBUSNo
Input signal, configurableYes
Input, resistance thermometerYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSNo
Supporting protocol for KNXNo
Input, currentNo
Supporting protocol for SUCONETNo
Input, voltageNo
Supporting protocol for ModbusNo
Supporting protocol for DeviceNetNo
Input, resistorNo
Supporting protocol for CANNo
Output, voltageNo
Output signal configurableNo
System accessoryYes
Number of interfaces PROFINET0
Radio standard BluetoothNo
Rack-assembly possibleNo
Appendant operation agent (Ex ib)No
Front built-in possibleNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Rail mounting possibleYes
Type of electric connectionPlug-in connection
Resolution of the analogue inputs16Bit
Radio standard Wi-Fi 802.11No
Explosion safety category for gasNone
Fieldbus connection over separate bus coupler possibleYes
Resolution of the analogue outputs0Bit
Wall mounting/direct mountingNo
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
Number of HW-interfaces Wireless0
Supporting protocol for SERCOSNo
Supporting protocol for AS-Interface Safety at WorkNo
IO link masterNo
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Analogue outputs configurableYes
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for Foundation FieldbusNo
Certified for UL hazardous location group A (acetylene)No
Supply voltage DC18 - 30V
Certified for UL hazardous location class INo
Radio standard GPRSNo
Analogue inputs configurableYes
SIL according to IEC 61508None
Certified for UL hazardous location class IINo
Supporting protocol for SafetyBUS pNo
Supply voltage AC 60 Hz0 - 0V
Certified for UL hazardous location division 2No
Certified for UL hazardous location class IIINo
Degree of protection (NEMA)1
Supporting protocol for EtherCATNo
Radio standard GSMNo
Supporting protocol for PROFIsafeNo
Radio standard UMTSNo
Certified for UL hazardous location division 1No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group E (metal dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

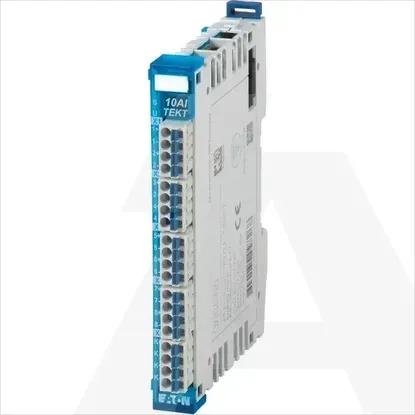

XN-322-10AI-TEKT
