Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Height16.8mm
Number of HW-interfaces RS-2320
Width80.3mm
Suitable for safety functionsNo
Depth104.2mm
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4850
Number of HW-interfaces parallel0
Number of digital outputs12
Input current at signal 10mA
Voltage type of supply voltageDC
Number of HW-interfaces other1
Number of HW-interfaces USB0
Time delay at signal exchange0.1 - 0.2ms
Supporting protocol for LONNo
Number of digital inputs0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Type of voltage (input voltage)DC
Supporting protocol for TCP/IPNo
With optical interfaceNo
Supporting protocol for CANNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Supporting protocol for PROFIBUSNo
Type of digital outputTransistor
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Appendant operation agent (Ex ib)No
Rail mounting possibleYes
Explosion safety category for dustNone
Supporting protocol for KNXNo
Short-circuit protection, outputs availableYes
Type of electric connectionPlug-in connection
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
Supporting protocol for DeviceNetNo
Fieldbus connection over separate bus coupler possibleYes
Appendant operation agent (Ex ia)No
System accessoryYes
Output current1.7A
Explosion safety category for gasNone
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Front built-in possibleNo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for DeviceNet SafetyNo
Performance level according to EN ISO 13849-1None
Rack-assembly possibleNo
Wall mounting/direct mountingNo
Radio standard BluetoothNo
Supporting protocol for AS-Interface Safety at WorkNo
Number of HW-interfaces Wireless0
Type of output voltageDC
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Permitted voltage at input0 - 0V
Permitted voltage at output0 - 30V
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
IO link masterNo
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC18 - 30V
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Digital outputs configurableNo
Digital inputs configurableNo
Radio standard GPRSNo
Radio standard Wi-Fi 802.11No
Radio standard GSMNo
Radio standard UMTSNo
Supporting protocol for EtherCATNo
Certified for UL hazardous location group D (propane)No
SIL according to IEC 61508None
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 2No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location class INo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

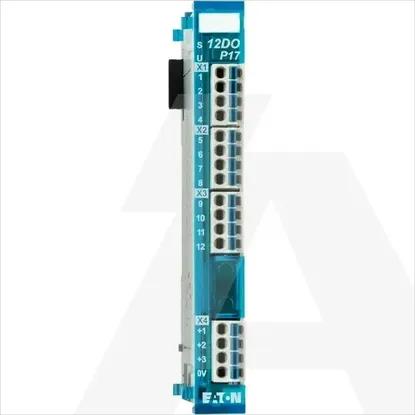

XN-322-12DO-P17
