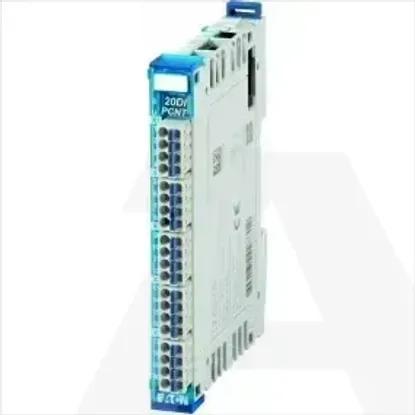

XN-322-20DI-PCNT

Name: XN-322-20DI-PCNT
Brand: EATON
Price: 294.63 EUR
Availability: BackOrder

Code: 1882245

ManufacturerEaton (Moeller)

Catalog number178767

TypeProgrammable logic controllers PLC

EAN code7640130098312

‌

‌
‌
‌
‌

‌

‌
‌

‌

Details

•Programmable logic controllers PLC
•Fieldbus, decentr. periphery - digital I/O module
•1 KOM
•EATON

Technical specifications

Supply voltage AC 50 Hz0 - 0V

Digital inputs configurableYes

Input current at signal 13.7mA

Number of digital outputs0

Voltage type of supply voltageDC

Type of digital outputNone

Type of voltage (input voltage)DC

Number of digital inputs20

Supply voltage DC18 - 30V

Digital outputs configurableNo

Output current0A

Permitted voltage at input0 - 30V

Short-circuit protection, outputs availableNo

Type of output voltageDC

Permitted voltage at output0 - 0V

Number of HW-interfaces industrial Ethernet0

Supply voltage AC 60 Hz0 - 0V

Number of HW-interfaces RS-4220

Number of HW-interfaces RS-4850

Number of HW-interfaces RS-2320

Number of interfaces PROFINET0

Number of HW-interfaces serial TTY0

Number of HW-interfaces parallel0

Number of HW-interfaces other1

Supporting protocol for INTERBUSNo

Supporting protocol for SUCONETNo

Supporting protocol for EtherCATNo

Number of HW-interfaces USB0

Number of HW-interfaces Wireless0

Supporting protocol for ASINo

Supporting protocol for PROFIBUSNo

Supporting protocol for CANNo

Supporting protocol for LONNo

Supporting protocol for SERCOSNo

Supporting protocol for DeviceNetNo

Supporting protocol for ModbusNo

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for Data-HighwayNo

Supporting protocol for TCP/IPNo

Supporting protocol for PROFINET CBANo

Supporting protocol for PROFINET IONo

Supporting protocol for KNXNo

Supporting protocol for PROFIsafeNo

Supporting protocol for EtherNet/IPNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for SafetyBUS pNo

With optical interfaceNo

Radio standard BluetoothNo

Supporting protocol for AS-Interface Safety at WorkNo

Radio standard Wi-Fi 802.11No

Radio standard GPRSNo

Radio standard GSMNo

Radio standard UMTSNo

IO link masterNo

System accessoryYes

Degree of protection (IP)IP20

Type of electric connectionPlug-in connection

Time delay at signal exchange0.01 - 0.5ms

Rail mounting possibleYes

Fieldbus connection over separate bus coupler possibleYes

Wall mounting/direct mountingNo

Front built-in possibleNo

Rack-assembly possibleNo

Suitable for safety functionsNo

SIL according to IEC 61508None

Appendant operation agent (Ex ia)No

Appendant operation agent (Ex ib)No

Explosion safety category for gasNone

Explosion safety category for dustNone

Certified for UL hazardous location class INo

Certified for UL hazardous location class IINo

Certified for UL hazardous location division 1No

Certified for UL hazardous location class IIINo

Certified for UL hazardous location division 2No

Certified for UL hazardous location group A (acetylene)No

Certified for UL hazardous location group B (hydrogen)No

Certified for UL hazardous location group C (ethylene)No

Certified for UL hazardous location group D (propane)No

Certified for UL hazardous location group E (metal dusts)No

Width80.3mm

Certified for UL hazardous location group F (carbonaceous dusts)No

Height16.8mm

Depth104.2mm

Certified for UL hazardous location group G (non-conductive dusts)No

Supporting protocol for INTERBUS-SafetyNo

Supporting protocol for other bus systemsYes

Performance level according to EN ISO 13849-1None

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
