Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Input current at signal 13.7mA
Width80.3mm
Depth104.2mm
Height16.8mm
Time delay at signal exchange0.4 - 0.6ms
Number of HW-interfaces RS-2320
Number of digital inputs20
Number of HW-interfaces industrial Ethernet0
Number of digital outputs0
Supporting protocol for LONNo
Voltage type of supply voltageDC
Suitable for safety functionsNo
Type of voltage (input voltage)DC
With optical interfaceNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of HW-interfaces other1
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Type of digital outputNone
Supporting protocol for SUCONETNo
Explosion safety category for gasNone
Supporting protocol for DeviceNetNo
Rail mounting possibleYes
Supporting protocol for Data-HighwayNo
Short-circuit protection, outputs availableNo
Type of electric connectionPlug-in connection
Supporting protocol for other bus systemsYes
Supporting protocol for ModbusNo
Output current0A
Number of HW-interfaces USB0
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for INTERBUS-SafetyNo
Appendant operation agent (Ex ia)No
System accessoryYes
Explosion safety category for dustNone
Supporting protocol for SERCOSNo
Radio standard Wi-Fi 802.11No
Number of interfaces PROFINET0
Supporting protocol for EtherNet/IPNo
Degree of protection (IP)IP20
Number of HW-interfaces Wireless0
Rack-assembly possibleNo
Fieldbus connection over separate bus coupler possibleYes
Supporting protocol for DeviceNet SafetyNo
Front built-in possibleNo
Radio standard BluetoothNo
Performance level according to EN ISO 13849-1None
Wall mounting/direct mountingNo
Appendant operation agent (Ex ib)No
IO link masterNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Certified for UL hazardous location division 2No
Radio standard GSMNo
Permitted voltage at input0 - 30V
Certified for UL hazardous location group B (hydrogen)No
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 1No
SIL according to IEC 61508None
Radio standard UMTSNo
Supply voltage AC 50 Hz0 - 0V
Digital outputs configurableNo
Certified for UL hazardous location class INo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group A (acetylene)No
Type of output voltageDC
Supply voltage DC18 - 30V
Supply voltage AC 60 Hz0 - 0V
Permitted voltage at output0 - 0V
Digital inputs configurableNo
Radio standard GPRSNo
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

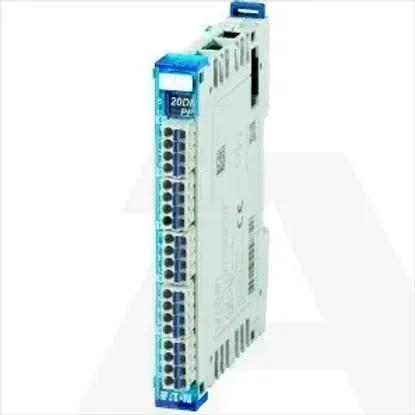

XN-322-20DI-PF
