Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Height16.8mm
Width80.3mm
Number of analogue inputs2
Number of analogue outputs2
Suitable for safety functionsNo
Power consumption1.7W
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Depth104.2mm
Number of HW-interfaces industrial Ethernet0
Voltage type of supply voltageDC
Supporting protocol for LONNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces serial TTY0
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Number of HW-interfaces other1
Supporting protocol for ASINo
Supporting protocol for KNXNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSNo
Number of HW-interfaces parallel0
Supporting protocol for ModbusNo
Output, voltageNo
Input, currentYes
Input, voltageNo
Number of HW-interfaces RS-4850
Supporting protocol for other bus systemsYes
Input signal, configurableYes
Input, resistance thermometerNo
Input, resistorNo
Output signal configurableNo
Input, thermocoupleNo
Output, currentYes
Appendant operation agent (Ex ia)No
Degree of protection (IP)IP20
System accessoryYes
Explosion safety category for dustNone
Fieldbus connection over separate bus coupler possibleYes
Type of electric connectionPlug-in connection
Appendant operation agent (Ex ib)No
Supporting protocol for INTERBUS-SafetyNo
Resolution of the analogue inputs16Bit
Supporting protocol for SERCOSNo
Number of HW-interfaces Wireless0
Resolution of the analogue outputs12Bit
Explosion safety category for gasNone
Number of interfaces PROFINET0
Rail mounting possibleYes
Supporting protocol for EtherNet/IPNo
Performance level according to EN ISO 13849-1None
Supporting protocol for AS-Interface Safety at WorkNo
IO link masterNo
Supporting protocol for DeviceNet SafetyNo
Radio standard BluetoothNo
Wall mounting/direct mountingNo
Radio standard Wi-Fi 802.11No
Front built-in possibleNo
Rack-assembly possibleNo
Radio standard GPRSNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supply voltage AC 60 Hz0 - 0V
Analogue inputs configurableYes
SIL according to IEC 61508None
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for SafetyBUS pNo
Supply voltage DC18 - 30V
Degree of protection (NEMA)1
Radio standard UMTSNo
Supporting protocol for Foundation FieldbusNo
Radio standard GSMNo
Supporting protocol for PROFINET IONo
Analogue outputs configurableYes
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location class INo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Supporting protocol for EtherCATNo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

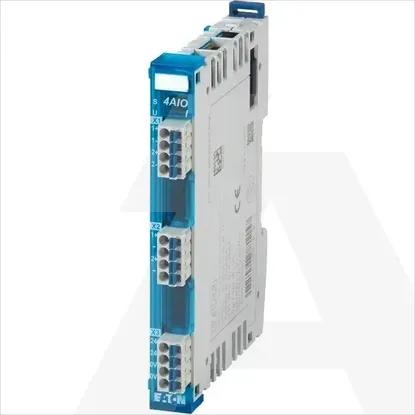

XN-322-4AIO-I
