Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Supporting protocol for LONNo
Number of analogue outputs2
Number of HW-interfaces parallel0
Width80.3mm
Voltage type of supply voltageDC
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Power consumption1.2W
Suitable for safety functionsNo
Number of analogue inputs2
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4850
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
Depth104.2mm
Height16.8mm
Number of HW-interfaces other1
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Input signal, configurableYes
Supporting protocol for TCP/IPNo
Type of electric connectionPlug-in connection
Supporting protocol for ModbusNo
Output, currentNo
Output signal configurableNo
Resolution of the analogue outputs12Bit
Supporting protocol for other bus systemsYes
Explosion safety category for gasNone
Supporting protocol for DeviceNetNo
Input, thermocoupleNo
Rail mounting possibleYes
Input, currentNo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Output, voltageYes
Supporting protocol for KNXNo
Input, resistance thermometerNo
Resolution of the analogue inputs16Bit
Input, resistorNo
Supporting protocol for SUCONETNo
Input, voltageYes
Appendant operation agent (Ex ib)No
Explosion safety category for dustNone
Degree of protection (IP)IP20
Fieldbus connection over separate bus coupler possibleYes
System accessoryYes
Appendant operation agent (Ex ia)No
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Wall mounting/direct mountingNo
Front built-in possibleNo
Radio standard Wi-Fi 802.11No
Rack-assembly possibleNo
Number of HW-interfaces Wireless0
Number of interfaces PROFINET0
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IONo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPNo
Performance level according to EN ISO 13849-1None
IO link masterNo
Supporting protocol for DeviceNet SafetyNo
Radio standard BluetoothNo
Supporting protocol for EtherCATNo
Degree of protection (NEMA)1
Analogue outputs configurableYes
Supply voltage DC18 - 30V
Radio standard UMTSNo
Analogue inputs configurableYes
SIL according to IEC 61508None
Certified for UL hazardous location group F (carbonaceous dusts)No
Radio standard GPRSNo
Radio standard GSMNo
Certified for UL hazardous location division 2No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Supply voltage AC 50 Hz0 - 0V
Certified for UL hazardous location group A (acetylene)No
Supply voltage AC 60 Hz0 - 0V
Certified for UL hazardous location class INo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group E (metal dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

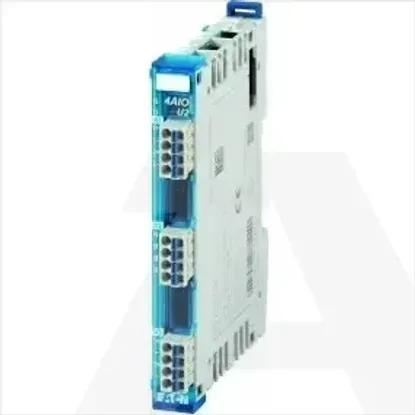

XN-322-4AIO-U2
