Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Width80.3mm
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel0
Height16.8mm
Number of analogue inputs4
Number of analogue outputs0
Supporting protocol for LONNo
Number of HW-interfaces RS-4850
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces other1
Number of HW-interfaces RS-4220
Voltage type of supply voltageDC
Number of HW-interfaces industrial Ethernet0
Power consumption0.3W
Suitable for safety functionsNo
Depth104.2mm
Supporting protocol for PROFIBUSNo
Supporting protocol for ModbusNo
Supporting protocol for CANNo
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Input, currentNo
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Input, voltageNo
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP20
System accessoryYes
Fieldbus connection over separate bus coupler possibleYes
Appendant operation agent (Ex ia)No
Supporting protocol for SERCOSNo
Output, currentNo
Type of electric connectionPlug-in connection
Explosion safety category for gasNone
Rail mounting possibleYes
Input, thermocoupleNo
Output, voltageNo
Resolution of the analogue inputs16Bit
Input signal, configurableYes
Explosion safety category for dustNone
Input, resistorYes
Output signal configurableNo
Input, resistance thermometerYes
Resolution of the analogue outputs0Bit
Supporting protocol for DeviceNetNo
Supporting protocol for PROFIsafeNo
Supply voltage DC18 - 30V
Rack-assembly possibleNo
Supply voltage AC 50 Hz0 - 0V
Number of HW-interfaces Wireless0
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Radio standard GPRSNo
Radio standard GSMNo
Supporting protocol for INTERBUS-SafetyNo
Analogue outputs configurableYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Number of interfaces PROFINET0
Radio standard BluetoothNo
Wall mounting/direct mountingNo
Analogue inputs configurableYes
Supply voltage AC 60 Hz0 - 0V
Radio standard Wi-Fi 802.11No
Supporting protocol for Foundation FieldbusNo
IO link masterNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFINET IONo
Supporting protocol for AS-Interface Safety at WorkNo
Front built-in possibleNo
Certified for UL hazardous location class INo
Certified for UL hazardous location class IINo
Radio standard UMTSNo
Certified for UL hazardous location group D (propane)No
Degree of protection (NEMA)1
Certified for UL hazardous location group A (acetylene)No
SIL according to IEC 61508None
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group G (non-conductive dusts)No
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location division 2No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

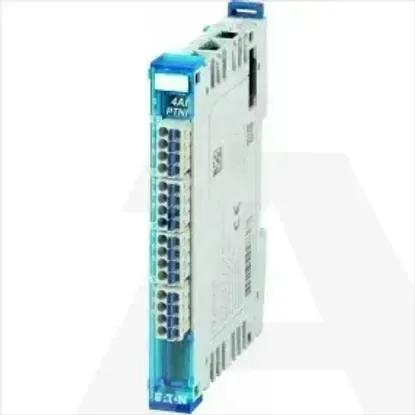

XN-322-4AI-PTNI
