Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Input current at signal 10mA
Suitable for safety functionsNo
Depth104.2mm
Width80.3mm
Number of digital inputs0
Height29.3mm
Voltage type of supply voltageAC/DC
Number of HW-interfaces serial TTY0
Number of digital outputs4
Number of HW-interfaces RS-2320
Time delay at signal exchange1 - 10ms
Number of HW-interfaces USB0
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces parallel0
Number of HW-interfaces other1
With optical interfaceNo
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-4220
Type of voltage (input voltage)AC/DC
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for DeviceNetNo
Supporting protocol for KNXNo
Explosion safety category for gasNone
Type of digital outputRelay
Supporting protocol for ModbusNo
Supporting protocol for CANNo
System accessoryYes
Fieldbus connection over separate bus coupler possibleYes
Type of electric connectionPlug-in connection
Short-circuit protection, outputs availableNo
Rail mounting possibleYes
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
Supporting protocol for INTERBUSNo
Output current6A
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Appendant operation agent (Ex ib)No
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Radio standard BluetoothNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Radio standard Wi-Fi 802.11No
Supply voltage AC 60 Hz0 - 0V
Front built-in possibleNo
IO link masterNo
Supporting protocol for DeviceNet SafetyNo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for EtherNet/IPNo
Wall mounting/direct mountingNo
Performance level according to EN ISO 13849-1None
Supporting protocol for PROFIsafeNo
Rack-assembly possibleNo
Supporting protocol for PROFINET IONo
Number of HW-interfaces Wireless0
Supply voltage DC18 - 30V
Type of output voltageAC/DC
Permitted voltage at output0 - 250V
Digital inputs configurableNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for INTERBUS-SafetyNo
Permitted voltage at input0 - 0V
Digital outputs configurableNo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location class INo
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location class IIINo
Supporting protocol for EtherCATNo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Radio standard GSMNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group E (metal dusts)No
Radio standard UMTSNo
Radio standard GPRSNo
SIL according to IEC 61508None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

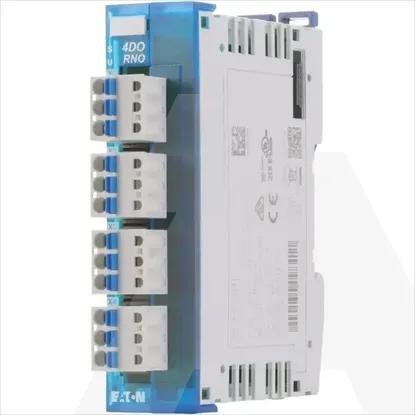

XN-322-4DO-RNO
