Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Number of analogue outputs1
Depth104.2mm
Number of analogue inputs7
Power consumption1.8W
Suitable for safety functionsNo
Height16.8mm
Width80.3mm
Voltage type of supply voltageDC
Supporting protocol for LONNo
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces serial TTY0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4850
Number of HW-interfaces other1
Supporting protocol for TCP/IPNo
Supporting protocol for ModbusNo
Supporting protocol for CANNo
Supporting protocol for KNXNo
Input, thermocoupleNo
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Input, voltageYes
Supporting protocol for SUCONETNo
Input, resistorNo
Input, resistance thermometerYes
Input, currentNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for ASINo
Output, voltageYes
Resolution of the analogue outputs0Bit
Explosion safety category for gasNone
Resolution of the analogue inputs16Bit
Rail mounting possibleYes
Type of electric connectionPlug-in connection
Output, currentNo
Explosion safety category for dustNone
Input signal, configurableYes
Output signal configurableNo
Appendant operation agent (Ex ia)No
Front built-in possibleNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Fieldbus connection over separate bus coupler possibleYes
Appendant operation agent (Ex ib)No
Supporting protocol for SERCOSNo
Number of HW-interfaces Wireless0
Number of interfaces PROFINET0
System accessoryYes
IO link masterNo
Rack-assembly possibleNo
Wall mounting/direct mountingNo
Radio standard BluetoothNo
Radio standard Wi-Fi 802.11No
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Radio standard GSMNo
Supply voltage AC 60 Hz0 - 0V
Radio standard GPRSNo
Certified for UL hazardous location division 2No
Certified for UL hazardous location class IIINo
Supporting protocol for EtherCATNo
SIL according to IEC 61508None
Supporting protocol for PROFIsafeNo
Certified for UL hazardous location division 1No
Supporting protocol for SafetyBUS pNo
Certified for UL hazardous location class IINo
Radio standard UMTSNo
Degree of protection (NEMA)1
Analogue inputs configurableYes
Supply voltage AC 50 Hz0 - 0V
Supply voltage DC18 - 30V
Analogue outputs configurableYes
Certified for UL hazardous location class INo
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group B (hydrogen)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

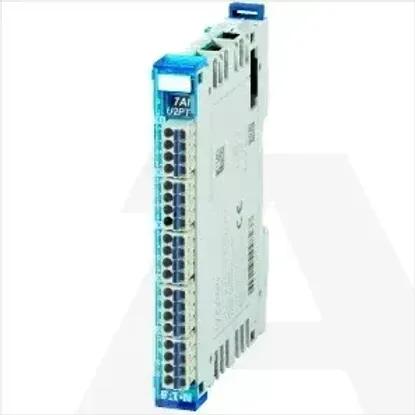

XN-322-7AI-U2PT
