Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Width80.3mm
Depth104.2mm
Power consumption0.6W
Height16.8mm
Number of HW-interfaces parallel0
Suitable for safety functionsNo
Number of HW-interfaces serial TTY0
Voltage type of supply voltageDC
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs8
Number of HW-interfaces RS-4220
Supporting protocol for ASINo
Number of HW-interfaces other1
Supporting protocol for CANNo
Supporting protocol for PROFIBUSNo
Supporting protocol for KNXNo
Number of HW-interfaces USB0
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Supporting protocol for LONNo
Number of HW-interfaces RS-4850
Supporting protocol for TCP/IPNo
Number of HW-interfaces RS-2320
Number of analogue outputs0
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
Input, currentYes
Resolution of the analogue inputs16Bit
Input, resistance thermometerNo
Input, resistorNo
Explosion safety category for dustNone
Output signal configurableNo
Rail mounting possibleYes
Input, voltageNo
System accessoryYes
Fieldbus connection over separate bus coupler possibleYes
Output, voltageNo
Output, currentNo
Input signal, configurableYes
Type of electric connectionPlug-in connection
Explosion safety category for gasNone
Input, thermocoupleNo
Resolution of the analogue outputs0Bit
Supporting protocol for SERCOSNo
Rack-assembly possibleNo
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-SafetyNo
Appendant operation agent (Ex ia)No
Front built-in possibleNo
Number of HW-interfaces Wireless0
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)No
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supply voltage DC18 - 30V
Supporting protocol for DeviceNet SafetyNo
Performance level according to EN ISO 13849-1None
Radio standard Wi-Fi 802.11No
IO link masterNo
Supporting protocol for EtherNet/IPNo
Wall mounting/direct mountingNo
Supporting protocol for PROFIsafeNo
Supply voltage AC 60 Hz0 - 0V
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Radio standard BluetoothNo
Supporting protocol for AS-Interface Safety at WorkNo
Supply voltage AC 50 Hz0 - 0V
Degree of protection (NEMA)1
Supporting protocol for EtherCATNo
Certified for UL hazardous location class INo
SIL according to IEC 61508None
Analogue inputs configurableYes
Radio standard GPRSNo
Radio standard GSMNo
Analogue outputs configurableYes
Radio standard UMTSNo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 2No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

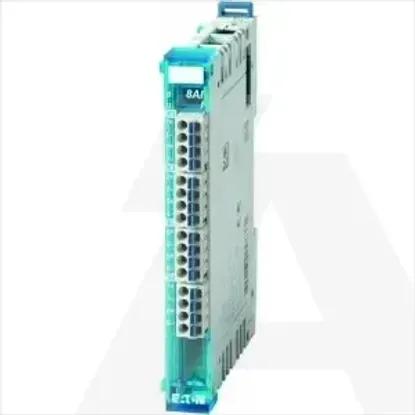

XN-322-8AI-I
