Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Width80.3mm
Depth104.2mm
Height16.8mm
Suitable for safety functionsNo
Power consumption2.6W
Supporting protocol for ASINo
Number of HW-interfaces RS-2320
Number of HW-interfaces other1
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-4220
Supporting protocol for TCP/IPNo
Voltage type of supply voltageDC
Number of HW-interfaces serial TTY0
Number of analogue outputs4
Number of HW-interfaces USB0
Number of analogue inputs4
Supporting protocol for LONNo
Supporting protocol for CANNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for Data-HighwayNo
Output, currentYes
Output, voltageNo
Supporting protocol for DeviceNetNo
Type of electric connectionPlug-in connection
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
Rail mounting possibleYes
Input, resistance thermometerNo
Explosion safety category for dustNone
Output signal configurableNo
Explosion safety category for gasNone
Resolution of the analogue outputs16Bit
Input signal, configurableYes
Resolution of the analogue inputs16Bit
Input, resistorNo
Input, voltageNo
Input, thermocoupleNo
Input, currentYes
Appendant operation agent (Ex ia)No
System accessoryYes
Appendant operation agent (Ex ib)No
Fieldbus connection over separate bus coupler possibleYes
Degree of protection (IP)IP20
Front built-in possibleNo
Number of interfaces PROFINET0
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces Wireless0
Rack-assembly possibleNo
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
Supporting protocol for SERCOSNo
Wall mounting/direct mountingNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for AS-Interface Safety at WorkNo
Performance level according to EN ISO 13849-1None
IO link masterNo
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supply voltage AC 50 Hz0 - 0V
Supply voltage DC18 - 30V
Supply voltage AC 60 Hz0 - 0V
Analogue outputs configurableYes
Radio standard GPRSNo
Analogue inputs configurableYes
Certified for UL hazardous location division 2No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location class INo
Radio standard UMTSNo
SIL according to IEC 61508None
Certified for UL hazardous location division 1No
Degree of protection (NEMA)1
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Supporting protocol for EtherCATNo
Certified for UL hazardous location group C (ethylene)No
Radio standard GSMNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

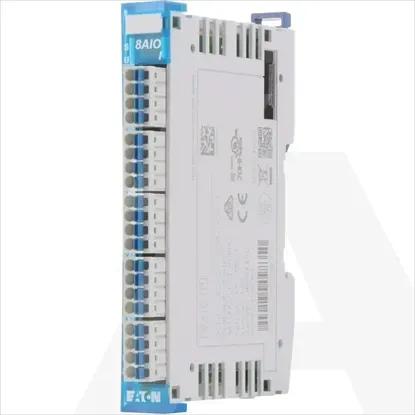

XN-322-8AIO-I
