Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - analogue I/O module
- •1 KOM
- •EATON
Technical specifications
Width80.3mm
Suitable for safety functionsNo
Number of HW-interfaces RS-4850
Power consumption1.8W
Supporting protocol for LONNo
Number of analogue outputs4
Number of HW-interfaces other1
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for KNXNo
Supporting protocol for TCP/IPNo
Height16.8mm
Number of HW-interfaces USB0
Voltage type of supply voltageDC
Supporting protocol for ASINo
Depth104.2mm
Number of analogue inputs4
Supporting protocol for CANNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusNo
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Input, resistorNo
Rail mounting possibleYes
Input, voltageYes
Resolution of the analogue inputs16Bit
Type of electric connectionPlug-in connection
Fieldbus connection over separate bus coupler possibleNo
Input, currentNo
Input, thermocoupleNo
Explosion safety category for gasNone
Output, voltageYes
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Supporting protocol for SERCOSNo
Supporting protocol for SUCONETNo
System accessoryYes
Output, currentNo
Input, resistance thermometerNo
Output signal configurableNo
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP20
Appendant operation agent (Ex ia)No
Explosion safety category for dustNone
Input signal, configurableYes
Supporting protocol for INTERBUS-SafetyNo
Resolution of the analogue outputs12Bit
Analogue inputs configurableYes
Analogue outputs configurableYes
Rack-assembly possibleNo
Supporting protocol for PROFINET CBANo
Supply voltage DC18 - 30V
Supporting protocol for PROFINET IONo
Number of HW-interfaces Wireless0
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyNo
Supply voltage AC 60 Hz0 - 0V
Wall mounting/direct mountingNo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for EtherNet/IPNo
Radio standard Wi-Fi 802.11No
Radio standard GPRSNo
Front built-in possibleNo
Radio standard GSMNo
Supporting protocol for SafetyBUS pNo
Radio standard UMTSNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Radio standard BluetoothNo
IO link masterNo
Certified for UL hazardous location class INo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location division 2No
Supporting protocol for EtherCATNo
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group G (non-conductive dusts)No
Degree of protection (NEMA)1
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

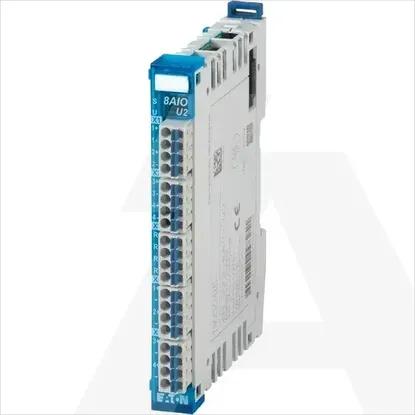

XN-322-8AIO-U2
