Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Depth104.2mm
Input current at signal 13.7mA
Width80.3mm
Height16.8mm
Suitable for safety functionsNo
Number of digital inputs8
Time delay at signal exchange4 - 6ms
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Voltage type of supply voltageDC
Number of digital outputs0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces parallel0
Supporting protocol for LONNo
Number of HW-interfaces RS-4850
Type of voltage (input voltage)DC
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPNo
With optical interfaceNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other1
Supporting protocol for ModbusNo
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for KNXNo
Supporting protocol for SUCONETNo
Supporting protocol for CANNo
Short-circuit protection, outputs availableNo
Type of electric connectionPlug-in connection
Output current0A
Supporting protocol for other bus systemsYes
Explosion safety category for gasNone
Type of digital outputNone
Rail mounting possibleYes
Explosion safety category for dustNone
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP20
Front built-in possibleNo
Supporting protocol for SERCOSNo
Appendant operation agent (Ex ia)No
Number of HW-interfaces Wireless0
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
System accessoryYes
Fieldbus connection over separate bus coupler possibleYes
Performance level according to EN ISO 13849-1None
Radio standard Wi-Fi 802.11No
Supporting protocol for AS-Interface Safety at WorkNo
IO link masterNo
Radio standard BluetoothNo
Wall mounting/direct mountingNo
Rack-assembly possibleNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET CBANo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Digital inputs configurableNo
Permitted voltage at output0 - 0V
Permitted voltage at input0 - 30V
Type of output voltageDC
Supply voltage DC18 - 30V
Supply voltage AC 60 Hz0 - 0V
Digital outputs configurableNo
Certified for UL hazardous location division 2No
Supporting protocol for EtherCATNo
Radio standard GPRSNo
Radio standard GSMNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class INo
SIL according to IEC 61508None
Certified for UL hazardous location class IIINo
Radio standard UMTSNo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group A (acetylene)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

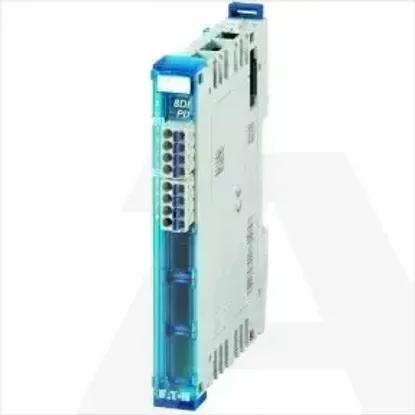

XN-322-8DI-PD
