Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - digital I/O module
- •1 KOM
- •EATON
Technical specifications
Depth104.2mm
Width80.3mm
Height16.8mm
Number of HW-interfaces serial TTY0
Suitable for safety functionsNo
Number of digital inputs0
Input current at signal 10mA
Number of digital outputs8
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Time delay at signal exchange0.05 - 0.1ms
Voltage type of supply voltageDC
Number of HW-interfaces USB0
Number of HW-interfaces RS-2320
Type of voltage (input voltage)DC
With optical interfaceNo
Supporting protocol for TCP/IPNo
Number of HW-interfaces other1
Supporting protocol for CANNo
Supporting protocol for KNXNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSNo
Supporting protocol for Data-HighwayNo
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsYes
System accessoryYes
Appendant operation agent (Ex ia)No
Short-circuit protection, outputs availableYes
Fieldbus connection over separate bus coupler possibleYes
Rail mounting possibleYes
Explosion safety category for gasNone
Supporting protocol for DeviceNetNo
Type of digital outputTransistor
Output current0.5A
Appendant operation agent (Ex ib)No
Type of electric connectionPlug-in connection
Explosion safety category for dustNone
Front built-in possibleNo
IO link masterNo
Wall mounting/direct mountingNo
Number of HW-interfaces Wireless0
Radio standard BluetoothNo
Rack-assembly possibleNo
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Radio standard Wi-Fi 802.11No
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Performance level according to EN ISO 13849-1None
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IONo
Supply voltage DC18 - 30V
Supporting protocol for EtherNet/IPNo
Supply voltage AC 60 Hz0 - 0V
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Permitted voltage at input0 - 0V
Supply voltage AC 50 Hz0 - 0V
Permitted voltage at output0 - 30V
Supporting protocol for PROFINET CBANo
Type of output voltageDC
Digital inputs configurableNo
Radio standard GSMNo
Radio standard UMTSNo
Radio standard GPRSNo
Digital outputs configurableNo
Supporting protocol for EtherCATNo
SIL according to IEC 61508None
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location class INo
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

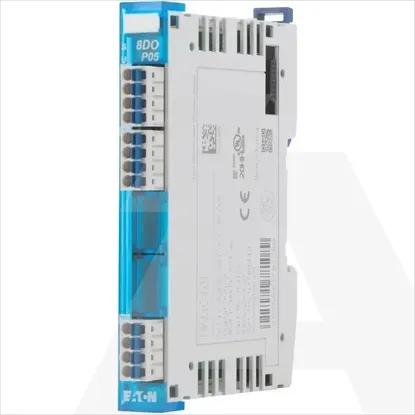

XN-322-8DO-P05
