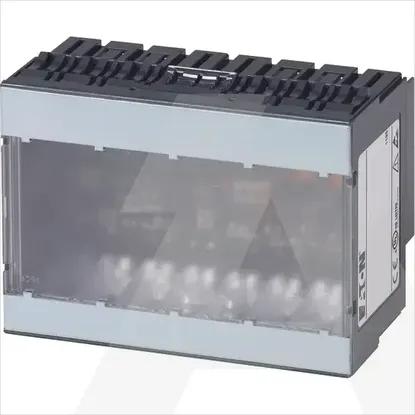

XN-32DI-24VDC-P

Name: XN-32DI-24VDC-P
Brand: EATON
Price: 532.59 EUR
Availability: BackOrder

Code: 1882263

ManufacturerEaton (Moeller)

Catalog number140147

TypeProgrammable logic controllers PLC

EAN code7640130120266

Details

•Programmable logic controllers PLC
•Fieldbus, decentr. periphery - digital I/O module
•1 KOM
•EATON

Technical specifications

Number of digital inputs32

Width74.1mm

Suitable for safety functionsNo

Height55.4mm

Input current at signal 12mA

Number of HW-interfaces industrial Ethernet0

Number of HW-interfaces RS-4220

Depth100.8mm

Number of HW-interfaces RS-4850

Number of HW-interfaces RS-2320

Number of HW-interfaces USB0

Voltage type of supply voltageDC

Number of HW-interfaces serial TTY0

Time delay at signal exchange0.1 - 0.3ms

Number of digital outputs0

Supporting protocol for LONNo

Supporting protocol for CANNo

Supporting protocol for TCP/IPNo

Number of HW-interfaces other1

Number of HW-interfaces parallel0

Supporting protocol for INTERBUSNo

Type of voltage (input voltage)DC

Supporting protocol for PROFIBUSNo

With optical interfaceNo

Supporting protocol for ASINo

Supporting protocol for KNXNo

Short-circuit protection, outputs availableNo

Type of digital outputNone

Supporting protocol for Data-HighwayNo

Supporting protocol for SUCONETNo

Supporting protocol for SERCOSNo

Supporting protocol for other bus systemsYes

Number of interfaces PROFINET0

Degree of protection (IP)IP20

Output current0A

Explosion safety category for gasNone

Rail mounting possibleYes

Supporting protocol for INTERBUS-SafetyNo

Number of HW-interfaces Wireless0

System accessoryYes

Appendant operation agent (Ex ib)No

Supporting protocol for DeviceNetNo

Front built-in possibleNo

Rack-assembly possibleNo

Explosion safety category for dustNone

Appendant operation agent (Ex ia)No

Supporting protocol for ModbusNo

Fieldbus connection over separate bus coupler possibleYes

Type of electric connectionScrew-/spring clamp connection

Wall mounting/direct mountingNo

Digital outputs configurableNo

Radio standard Wi-Fi 802.11No

Supporting protocol for DeviceNet SafetyNo

Supporting protocol for EtherNet/IPNo

Supporting protocol for PROFIsafeNo

Performance level according to EN ISO 13849-1None

Supporting protocol for SafetyBUS pNo

Digital inputs configurableNo

Supply voltage AC 50 Hz0 - 0V

Supply voltage AC 60 Hz0 - 0V

Radio standard BluetoothNo

Supporting protocol for PROFINET IONo

Permitted voltage at input0 - 30V

Supply voltage DC18 - 30V

Supporting protocol for AS-Interface Safety at WorkNo

Radio standard GPRSNo

Permitted voltage at output0 - 0V

Supporting protocol for PROFINET CBANo

IO link masterNo

Supporting protocol for Foundation FieldbusNo

Type of output voltageDC

Supporting protocol for EtherCATNo

Radio standard GSMNo

Radio standard UMTSNo

SIL according to IEC 61508None

Certified for UL hazardous location division 1No

Certified for UL hazardous location class INo

Certified for UL hazardous location group B (hydrogen)No

Certified for UL hazardous location class IIINo

Certified for UL hazardous location group C (ethylene)No

Certified for UL hazardous location group E (metal dusts)No

Certified for UL hazardous location group G (non-conductive dusts)No

Certified for UL hazardous location group A (acetylene)No

Certified for UL hazardous location group D (propane)No

Certified for UL hazardous location division 2No

Certified for UL hazardous location class IINo

Certified for UL hazardous location group F (carbonaceous dusts)No

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
