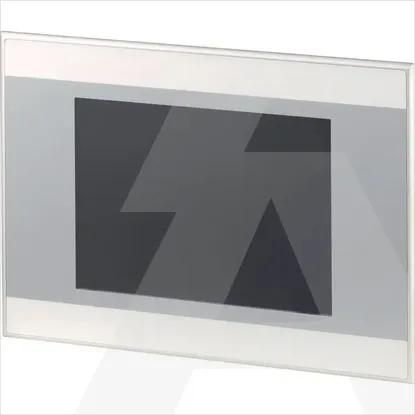

XV-152-D6-84TVRC-10
Code: 1884422
ManufacturerEaton
Catalog number150605
TypeXV-152-D6-84TVRC-10
CategoryGraphic panel
EAN code7640130097230
Details
- •"Touch panel 8,4"" with PLC, Ethernet, USB, RS23"
- •Programmable logic controllers PLC
- •Graphic panel
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Suitable for safety functionsNo
Built-in depth47mm
Number of HW-interfaces USB2
Number of HW-interfaces RS-4851
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces serial TTY0
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2321
Operating temperature0 - 50°C
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for CANYes
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other1
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Number of colours of the display65536
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
With message indicationYes
Number of function buttons, programmable0
Useful project memory/user memory64000kByte
Number of pixels, horizontal640
Number of pixels, vertical480
Process value representation (output) possibleYes
With message system (incl. buffer and confirmation)Yes
With alpha numeric keyboardYes
With numeric keyboardYes
Additional software components, loadableYes
With recipesYes
With printer outputYes
Process default value (input) possibleYes
With SW interfacesYes
Number of password levels200
Number of online languages100
Height of the front208mm
Radio standard BluetoothNo
Rail mounting possibleNo
Number of HW-interfaces Wireless0
Supporting protocol for INTERBUS-SafetyNo
Radio standard Wi-Fi 802.11No
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Width of the front275mm
Supporting protocol for PROFINET IONo
Supporting protocol for DeviceNet SafetyNo
IO link masterNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Number of grey-scales/blue-scales of display0
Type of displayTFT
Wall mounting/direct mountingNo
Radio standard GPRSNo
Certified for UL hazardous location class INo
Number of buttons with LED0
Number of system buttons1
Certified for UL hazardous location class IINo
Touch technologyResistive touch
Radio standard UMTSNo
Supporting protocol for EtherCATNo
Radio standard GSMNo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location division 1No
Certified for UL hazardous location group G (non-conductive dusts)No
Degree of protection (NEMA), front side4X
Power consumption2.5W
Screen diagonal8.4inch
Voltage type of supply voltageDC
With colour displayYes
Degree of protection (IP), front sideIP65
Supply voltage AC 50 Hz0 - 0V
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC20.4 - 28.8V
