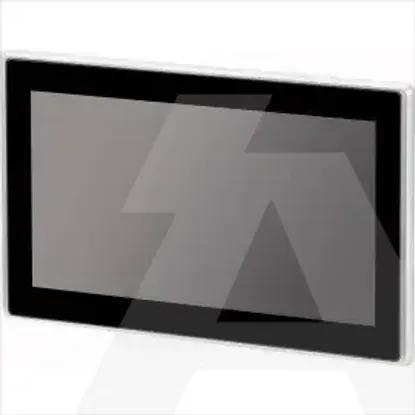

Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Built-in depth50.1mm
Suitable for safety functionsNo
Power consumption18W
Supporting protocol for CANYes
Voltage type of supply voltageDC
Operating temperature0 - 50°C
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-2321
Number of HW-interfaces USB2
Screen diagonal10.1inch
Supporting protocol for TCP/IPYes
Number of HW-interfaces RS-4851
Supporting protocol for PROFIBUSYes
Number of HW-interfaces RS-4220
Number of HW-interfaces other2
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Supporting protocol for LONNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
With colour displayYes
Supporting protocol for DeviceNetNo
Number of colours of the display16777216
Number of pixels, vertical600
Supporting protocol for other bus systemsNo
Number of pixels, horizontal1024
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
With message system (incl. buffer and confirmation)Yes
Useful project memory/user memory512000kByte
With alpha numeric keyboardNo
With message indicationYes
With recipesYes
With numeric keyboardNo
Number of function buttons, programmable0
With printer outputYes
Process default value (input) possibleYes
Number of password levels200
Process value representation (output) possibleYes
Degree of protection (IP), front sideIP65
Additional software components, loadableYes
Number of online languages100
Supporting protocol for DeviceNet SafetyNo
Radio standard BluetoothNo
Width of the front269mm
Radio standard Wi-Fi 802.11No
Supporting protocol for Foundation FieldbusNo
Wall mounting/direct mountingNo
With SW interfacesYes
Supporting protocol for SERCOSNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET IONo
Supply voltage AC 50 Hz0 - 0V
Supporting protocol for PROFIsafeNo
Type of displayTFT
Supply voltage DC19.2 - 30V
Supporting protocol for INTERBUS-SafetyNo
IO link masterNo
Rail mounting possibleNo
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces Wireless0
Supply voltage AC 60 Hz0 - 0V
Height of the front174mm
Number of interfaces PROFINET0
Number of grey-scales/blue-scales of display0
Certified for UL hazardous location class INo
Number of system buttons1
Supporting protocol for EtherCATYes
Touch technologyCapacitive multitouch
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 2No
Radio standard GPRSNo
Certified for UL hazardous location group G (non-conductive dusts)No
Degree of protection (NEMA), front side12
Certified for UL hazardous location division 1No
Radio standard GSMNo
Radio standard UMTSNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Number of buttons with LED0
