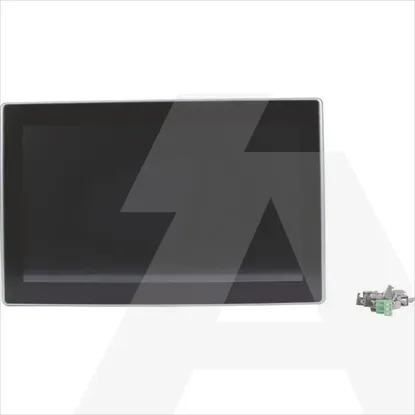

XV-303-15-C02-A00-1C
Code: 1884452
ManufacturerEaton
Catalog number191074
TypeXV-303-15-C02-A00-1C
CategoryGraphic panel
EAN code7640130099135
Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Built-in depth75.5mm
Suitable for safety functionsNo
Operating temperature0 - 50°C
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Supporting protocol for LONNo
Number of HW-interfaces parallel0
Number of HW-interfaces other1
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2321
Number of HW-interfaces USB2
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPYes
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetNo
Supporting protocol for INTERBUSNo
Number of colours of the display16777216
Number of pixels, horizontal1366
Number of pixels, vertical768
Supporting protocol for Data-HighwayNo
Supporting protocol for CANYes
Number of function buttons, programmable0
Process value representation (output) possibleYes
With printer outputYes
With alpha numeric keyboardNo
With message system (incl. buffer and confirmation)Yes
With numeric keyboardNo
With SW interfacesYes
With recipesYes
Width of the front404mm
Number of HW-interfaces Wireless0
Number of online languages100
Number of interfaces PROFINET0
Height of the front255mm
With message indicationYes
Number of password levels200
Supporting protocol for INTERBUS-SafetyNo
Useful project memory/user memory512000kByte
Additional software components, loadableYes
Process default value (input) possibleYes
Rail mounting possibleNo
Supporting protocol for SERCOSNo
IO link masterNo
Radio standard Wi-Fi 802.11No
Wall mounting/direct mountingNo
Radio standard BluetoothNo
Supporting protocol for Foundation FieldbusNo
Type of displayTFT
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Radio standard UMTSNo
Supporting protocol for EtherCATYes
Number of buttons with LED0
Touch technologyCapacitive multitouch
Degree of protection (NEMA), front side12
Supporting protocol for PROFINET IONo
Number of system buttons1
Radio standard GPRSNo
Radio standard GSMNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Certified for UL hazardous location class INo
Supporting protocol for PROFIsafeNo
Number of grey-scales/blue-scales of display0
Supporting protocol for DeviceNet SafetyNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group C (ethylene)No
Power consumption16W
Screen diagonal15.6inch
Voltage type of supply voltageDC
With colour displayYes
Degree of protection (IP), front sideIP65
Supply voltage AC 50 Hz0 - 0V
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
