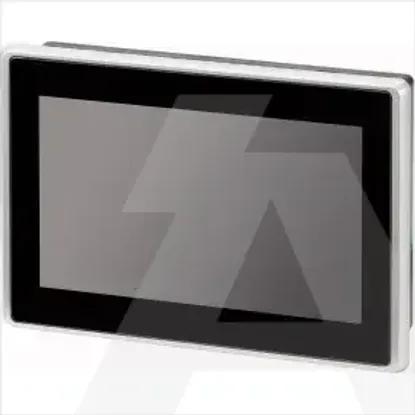

XV-303-70-C02-A00-1C
Code: 1884465
ManufacturerEaton
Catalog number179654
TypeXV-303-70-C02-A00-1C
CategoryGraphic panel
EAN code7640130098695
Details
- •"Touch panel 7"" with PLC, Capacitive touch, 2x E"
- •Programmable logic controllers PLC
- •Graphic panel
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Suitable for safety functionsNo
Built-in depth43.1mm
Number of HW-interfaces serial TTY0
Supporting protocol for ASINo
Number of HW-interfaces RS-4220
Supporting protocol for SUCONETNo
Supporting protocol for KNXNo
Number of HW-interfaces parallel0
Number of HW-interfaces other2
Number of HW-interfaces industrial Ethernet2
Supporting protocol for INTERBUSNo
Supporting protocol for CANYes
Operating temperature0 - 50°C
Supporting protocol for DeviceNetNo
Supporting protocol for TCP/IPYes
Supporting protocol for other bus systemsNo
Number of pixels, horizontal1024
Supporting protocol for PROFIBUSYes
Supporting protocol for LONNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4851
Number of colours of the display16777216
Number of HW-interfaces RS-2321
Number of HW-interfaces USB2
With alpha numeric keyboardNo
Number of function buttons, programmable0
With recipesYes
Width of the front196mm
Additional software components, loadableYes
Number of pixels, vertical600
With message indicationYes
Number of online languages100
With message system (incl. buffer and confirmation)Yes
With printer outputYes
Useful project memory/user memory512000kByte
Process default value (input) possibleYes
Number of password levels200
With numeric keyboardNo
With SW interfacesYes
Process value representation (output) possibleYes
Radio standard BluetoothNo
Rail mounting possibleNo
Number of interfaces PROFINET0
Number of HW-interfaces Wireless0
Supporting protocol for SERCOSNo
Wall mounting/direct mountingNo
Supporting protocol for INTERBUS-SafetyNo
Height of the front135mm
Radio standard Wi-Fi 802.11No
IO link masterNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Degree of protection (NEMA), front side12
Supporting protocol for EtherNet/IPYes
Number of system buttons1
Touch technologyCapacitive multitouch
Number of grey-scales/blue-scales of display0
Supporting protocol for EtherCATYes
Radio standard GSMNo
Certified for UL hazardous location class INo
Number of buttons with LED0
Radio standard UMTSNo
Supporting protocol for PROFINET IONo
Certified for UL hazardous location class IINo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Radio standard GPRSNo
Supporting protocol for PROFIsafeNo
Type of displayTFT
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Power consumption14.4W
Screen diagonal7inch
Voltage type of supply voltageDC
With colour displayYes
Degree of protection (IP), front sideIP65
Supply voltage AC 50 Hz0 - 0V
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
