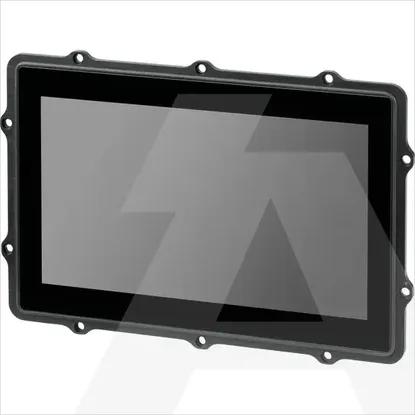

XV-313-10-CE0-A00-1C
Code: 1884469
ManufacturerEaton
Catalog number191002
TypeXV-313-10-CE0-A00-1C
CategoryGraphic panel
EAN code7640130099067
Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Operating temperature0 - 50°C
Number of HW-interfaces parallel0
Built-in depth43.1mm
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Supporting protocol for LONNo
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
Number of HW-interfaces other1
Supporting protocol for PROFIBUSNo
Suitable for safety functionsNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2321
Number of HW-interfaces USB2
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
Supporting protocol for CANYes
Supporting protocol for SUCONETNo
Useful project memory/user memory512000kByte
Number of colours of the display16777216
Number of function buttons, programmable0
With message indicationYes
With alpha numeric keyboardNo
Process value representation (output) possibleYes
With numeric keyboardNo
Number of pixels, vertical600
With message system (incl. buffer and confirmation)Yes
Number of pixels, horizontal1024
Process default value (input) possibleYes
Supporting protocol for other bus systemsNo
Supporting protocol for DeviceNetNo
Number of online languages100
Height of the front255mm
With SW interfacesYes
Additional software components, loadableYes
Number of password levels200
Width of the front404mm
With recipesYes
Rail mounting possibleNo
With printer outputYes
Supporting protocol for PROFINET IONo
Radio standard BluetoothNo
Supporting protocol for DeviceNet SafetyNo
Wall mounting/direct mountingNo
Number of HW-interfaces Wireless0
Type of displayTFT
IO link masterNo
Radio standard Wi-Fi 802.11No
Supporting protocol for Foundation FieldbusNo
Number of grey-scales/blue-scales of display0
Supporting protocol for EtherNet/IPYes
Number of interfaces PROFINET0
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Number of buttons with LED0
Radio standard GSMNo
Radio standard GPRSNo
Radio standard UMTSNo
Degree of protection (NEMA), front side12
Touch technologyCapacitive multitouch
Number of system buttons1
Screen diagonal7inch
Voltage type of supply voltageDC
With colour displayYes
Degree of protection (IP), front sideIP65
Supply voltage AC 50 Hz0 - 0V
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
